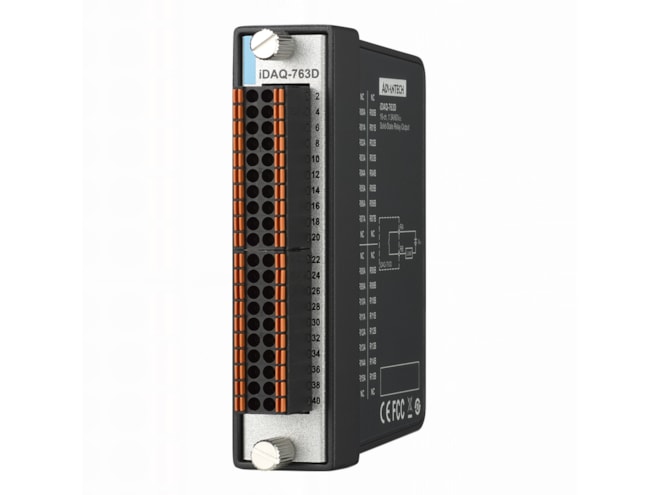

Advantech IDAQ-763D-AE

16-ch SSR iDAQ module.

$490.00
Part Number
  • IDAQ-763D-AE
Highlights...

Features

  • Channels: 16 Form A
  • Switching Voltage: 60 VDC
  • Switching Current: 1.3 A Max. @ 25 °C, 0.7 A Max. @ 60 °C
  • Vibration Protection: 5 Grms, random
  • Shock Protection: 30 G, half sine
  • Hot-swappable in iDAQ system
  • Detachable Euro-type spring terminal connectors
  • 8-ch Form A solid-state relay (SSR) output
  • 600VRMS isolation for relay outputs
  • Supports buffered update rates up to 500Hz
16-ch SSR Output iDAQ Module
