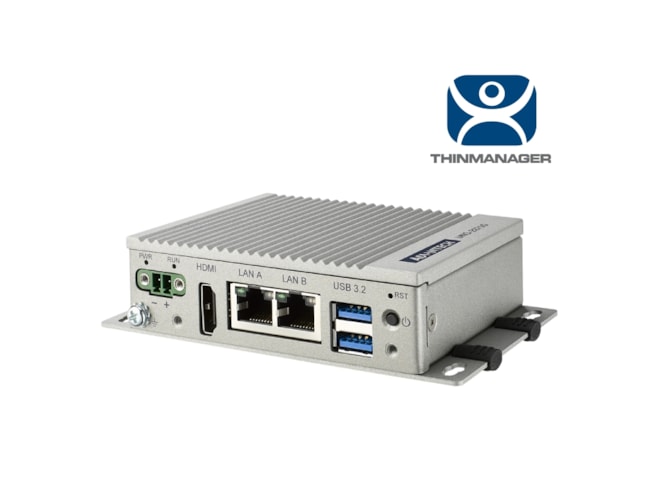

Advantech ESRP-CMS-U2271V2

ThinManager Ready Pocket-Size Edge IoT Thin Client with Intel® Celeron®N6210.

$740.00
Part Number
  • ESRP-CMS-U2271V2
Highlights...

Features

  • Ingress Protection: IP30
  • Relative Humidity: 10~95% RH (non-condensing)
  • Shock Protection: 50 G, half sine
  • Vibration Protection: 2 Grms, random
  • Certification: CE, FCC, UL, CCC, BSMI
  • CPU: Intel® Celeron® N6210 1.2GHz Dual-Core
  • Graphics Engine: Intel® UHD Graphic 620
  • Memory: 1 x DDR4 with 4 GB, 1 x DDR4 with 8 GB
  • OS Support: Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Power Input: 10~30 VDC
  • Storage: 32 GB eMMC, 1 x mSATA (shared with mPCIe)
  • Displays: 1 x HDMI
  • Expansion: 1 x Full-size mPCIe Slot
  • LAN Ports: 2 x 10/100/1000 Mbps
  • Power Connector: 1 x 2-Pin Terminal Block
  • USB Ports: 2 x USB 3.2
  • Dimension (W x H x D): 100 x 70 x 30 mm
  • Enclosure: Aluminum housing
  • Weight (Net): 0.5 kg (1.1 lb)
  • BIOS: ThinManager BIOS
  • Verified with ACP ThinManager, ACP BIOS enabled
  • Intel® Celeron® N6210, 2 x GbE, 2 x USB 3.2 Gen 1, and 1 x HDMI 1.4
  • Compact, robust, fanless, and cable-free system with modular design
ESRP-CMS-U2271V2 is a perfect ThinManager multi-monitor industrial thin client for applications where flexibility and cost savings of 2 monitors per client is desired, providing a unique solution for centralized management of factory floor.
