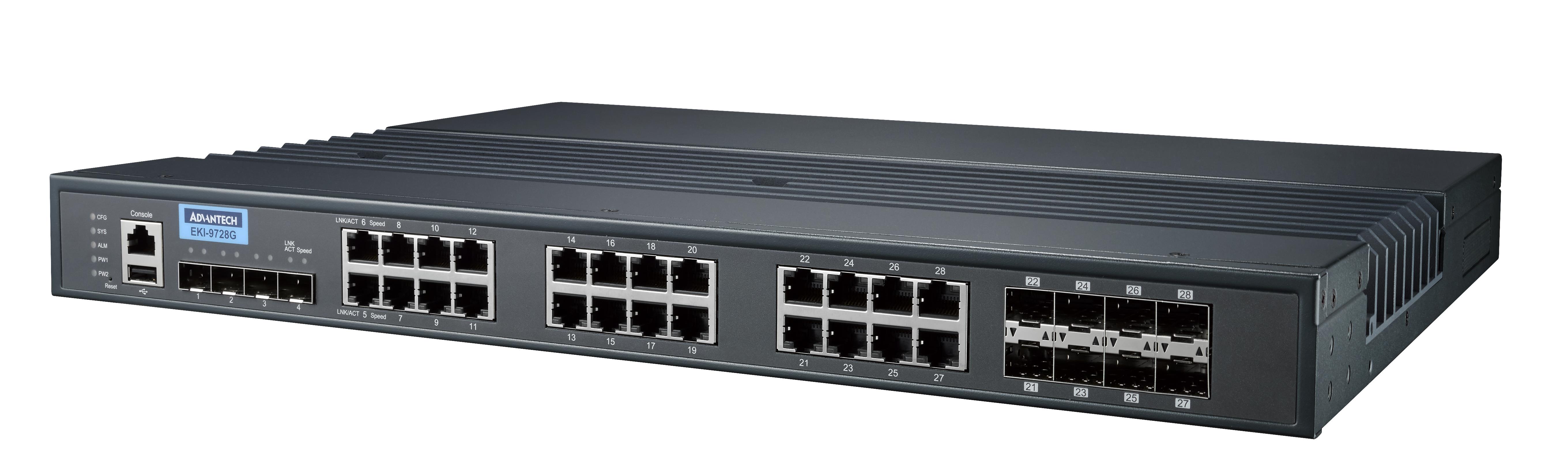

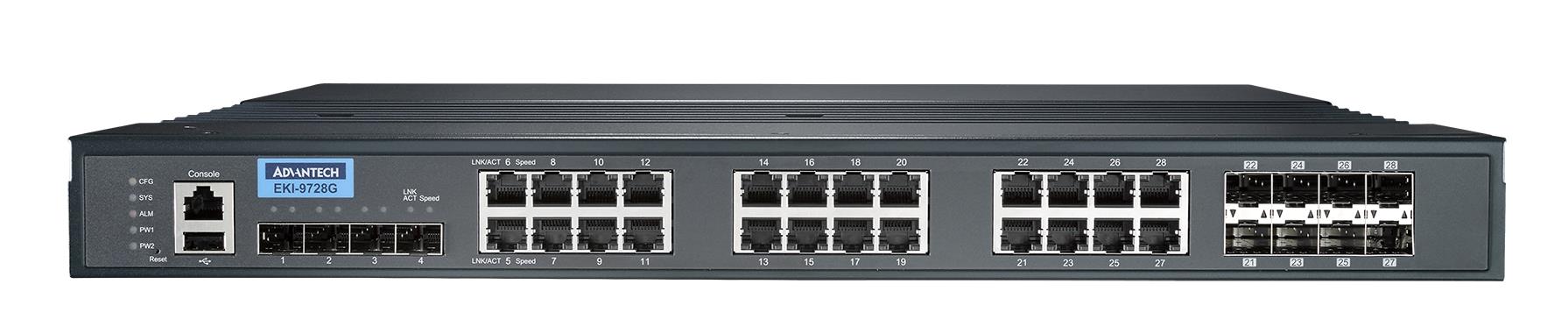

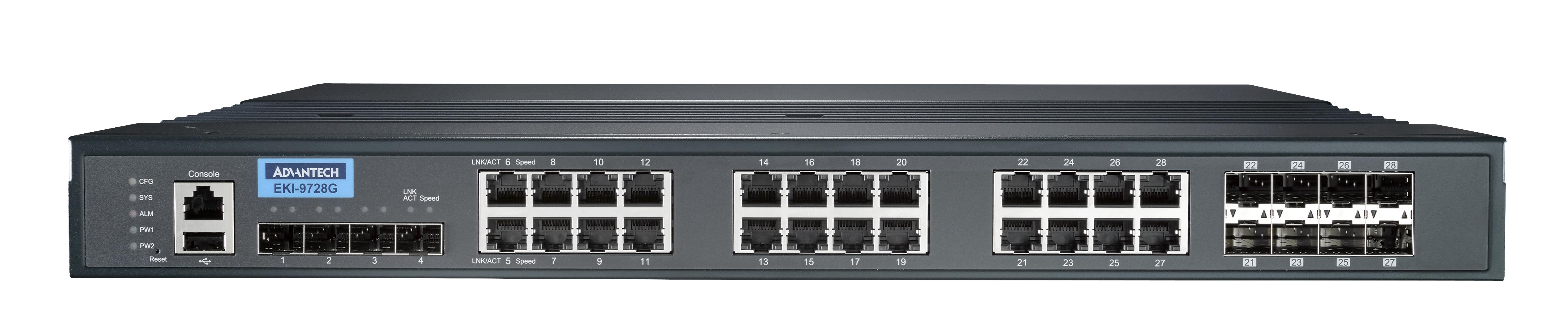

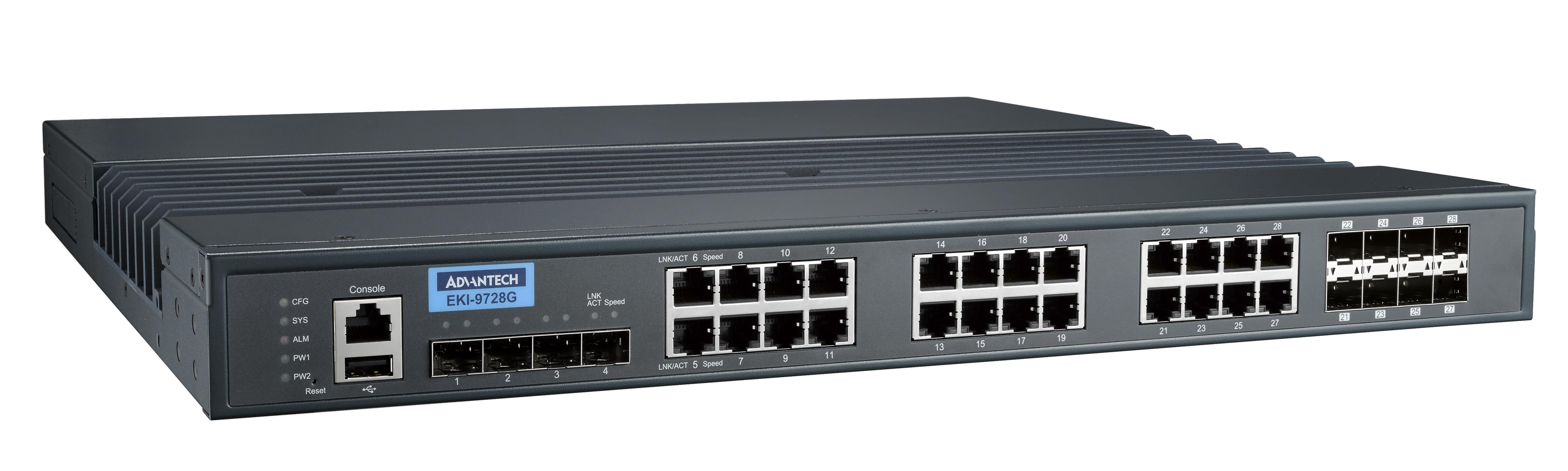

Advantech EKI-9728G-4X8CI-AE

Features

• Ethernet Standard: IEEE 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1X, 802.1D, 802.1s, 802.1w, 802.1Q, 802.1ab
• Vibration: IEC 60068-2-6
• Freefall: IEC 60068-2-32
• Shock: IEC 60068-2-27
• EMI: CE, FCC Class A
• EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• Safety: EN 62368-1
• Temperature (Max. Operating): 85°C (185°F)
• Relative Humidity: 10~95%
• Fiber Transmission Distance: Depends on fiber module
• Fiber Port Connector Type: SFP+ cage
• Fiber Port Interface: SFP+
• RJ-45 Transmission Distance: 100 m
• RJ-45 Port Connector Type: 4 x SFP + 16 x RJ-45 + 8 x RJ45/SFP Combo ports
• RJ-45 Transmission Speed: 10/100/1000 Mbps ; 10 Gbpx
• Mounting (Rack Mount): Yes
• Weight: 6.3 kg
• IP Rating: IP30
• Dimensions (W x H x D): 442 x 44 x 352 mm
• Power Input (AC): 90 ~ 264 VAC
• Power Operating Current: 0.17A @ 110VAC (system)

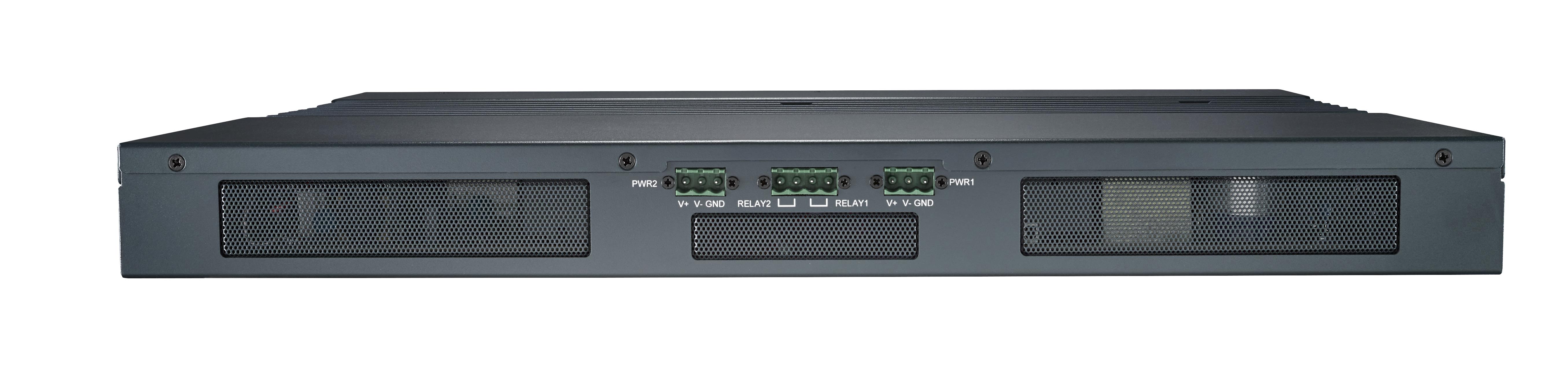

• Power Connector Type: 2 x 3-pin removable screw terminal (power); 1 x 4-pin removable screw terminal (relay)
• Power Input (DC): 88 ~ 370 VDC
• Power Consumption: 19.24W (system)
• Reverse Polarity: Present
• Jumbo Frame: 9,216 bytes
• Switch Fabric Speed: 128Gbps
• Packet Buffer Size: 1.5M bit
• MAC Table Size: 16K
• Warranty Period: 5 years
• 16 x Gigabit RJ-45 ports + 4 x 10GbE SFP ports + 8 x Gigabit combo ports
• L3 function : Static route , RIP v1/v2 , OSPF v2 , VRRP
• SFP socket for easy and flexible fiber expansion
• Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
• Security:802.1x HTTPS,SSH and SNMPv3
• Dual power input and 2 relay output
