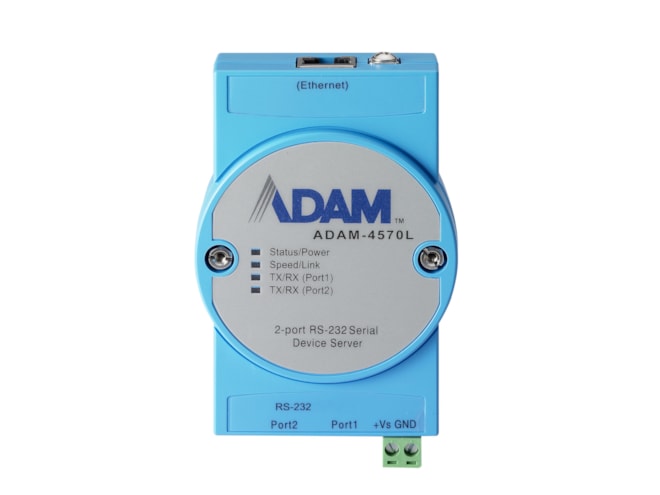

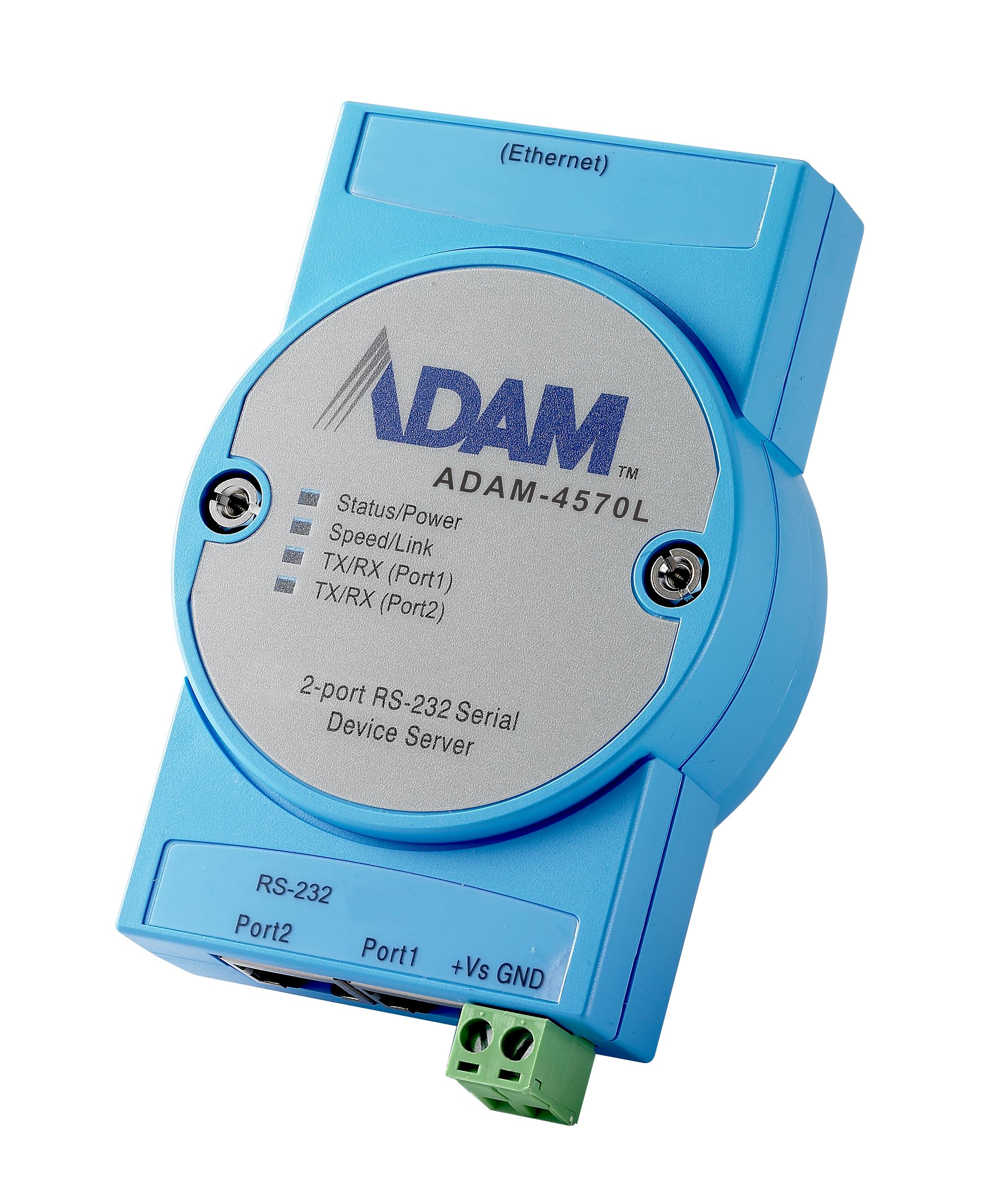

Advantech ADAM-4570L-DE

2-port RS-232 Serial Device Server.

$182.00
Part Number
  • ADAM-4570L-DE
Highlights...

Features

  • EMC: CE, FCC
  • EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
  • EMS: EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024
  • Freefall: NA
  • RJ-45 Port Connector Type: RJ-45
  • Serial Port Connector Type: RJ48
  • Operating Humidity: 5~95% RH
  • Temperature (Max. Operating): 60°C (140°F)
  • Ethernet Standard: IEEE 802.3 , 802.3u
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Dimensions (W x H x D): 70 x 112 x 25 mm
  • Enclosure (Plastic): Yes
  • IP Rating: IP30
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Weight: 125 g
  • Power Consumption: 2.5W
  • Power Input (DC): 10 ~ 30 VDC
  • Power Operating Current: 0.3A @ 12 V
  • RS-232: Yes
  • Baud Rate: 50 ~ 921.6 Kbps
  • Configuration: Windows utility, Web Browser
  • Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
  • Operation Mode: Virtual COM, TCP/UDP server TCP/UDP client
  • Warranty Period: 5 years
  • Supports RS-232 serial communication
  • Supports baud rate up to 921.6 kbps
  • Provides COM port redirection (Virtual COM) mode
  • Allows a max. of 5 hosts to access one serial port
  • Built-in 15 KV ESD protection for all serial signals
  • Provides 10/100 Mbps auto-sensing Ethernet port
  • Supports auto re-connection function
  • Supports Windows 2000/XP/Vista drivers
  • Supports remote update firmware
ADAM-4571 and ADAM-4571L are fast and cost effective data gateways between serial and Ethernet interfaces. The units also bring the advantages of remote management and dataaccessibility to RS-232/422/485 devices. The transmission speed of the units is up to 230 kbps, meeting the demands for high-speed data exchanges. In addition, you can useWindows utility to configure ADAM-4571 and ADAM-4571L without further programming. The units not only protect your current hardware investment but also ensure future networkexpandability. Since the protocol conversion is transparent, all your existing devices can be seamlessly integrated with an Ethernet network. Therefore, ADAM-4571 and ADAM-4571Lcan be used in security systems, factory automation, SCADA, transportation and more. ADAM-4571 and ADAM4571L link both your existing human-machine interface(HMI) PC andyour RS-232/422/485 devices with Ethernet cables.ADAM-4571 and ADAM-4571L come with a Windows configuration and port-mapping utility. The configuration tool can auto-detect all Ethernet Data Gateway devices on the localnetwork, and let you adjust all settings. The port mapping utility helps you to setup up COM ports for Windows NT/2000/XP platform. This helps you configure all ports to meetyour needs.
