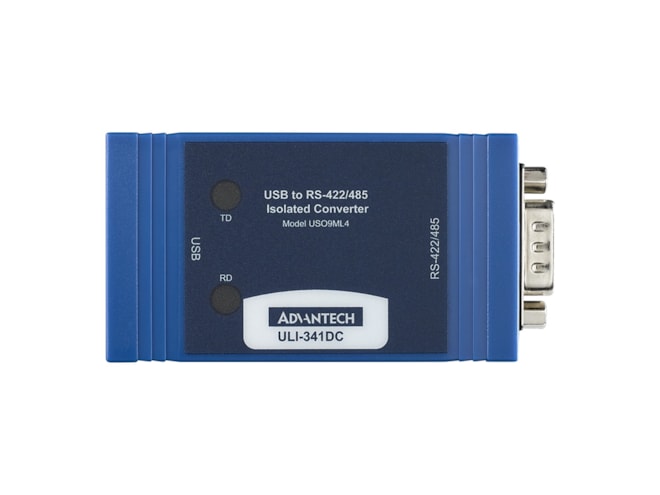

Advantech BB-USO9ML4

ULI-341DC - USB to RS-422/485 (DB9 Male) Isolated Converter.

$143.00
Part Number
  • BB-USO9ML4
Highlights...

Features

  • Technology: USB
  • Mounting: Inline
  • Serial Standard: RS-422 / RS-485
  • Power: Bus Powered
  • Temperature: 0 to 70C
  • Standard: USB 2.0
  • Isolation: 2kV
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Connector Type: Type B (Female) High Retention
  • Serial Type: RS-422, RS-485
  • Serial Connector: Terminal Block
  • Serial Port Connector Type: DB9 male
  • Maximum Serial Transmission Speed: 460.8 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Isolation: 2,000 VDC
  • Power Input (USB): Port-Powered from USB host (5 VDC)
  • Mounting: Inline
  • USB to RS-422/485 Converter
  • 2 kV Isolation
  • USB Port Powered
  • High Retention USB Connector, DB9 Male Serial Connector
  • 460.8 kbps Serial Data Rate
Supports 2-wire USB to RS-485 or 4-wire RS-422/485, long range and multi-drop communication. Easy to set up with DB9 Male and a high retention USB connector that works with a standard USB cable, which is included. LEDs indicate transmit and receive. USB Port Powered. DB9 Male Serial Connector.
