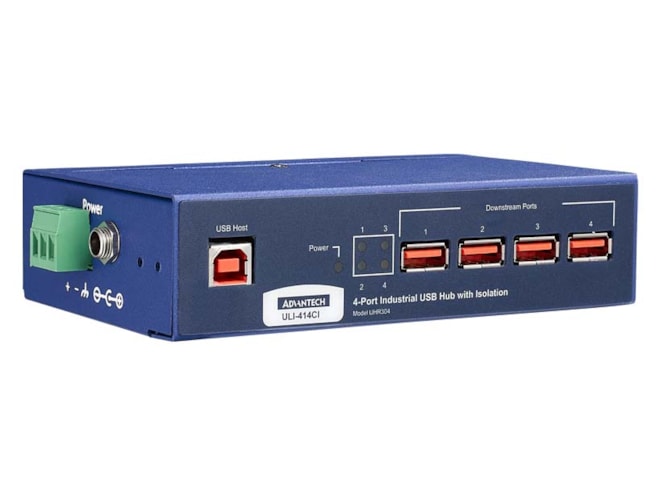

Advantech BB-UHR304

ULI-414CI - Industrial USB 2.0 Hub, 4 Port, Industrial, Isolated, High Retention Connectors.

$356.00
Part Number
  • BB-UHR304
Highlights...

Features

  • Technology: USB
  • Power Input (DC): 10 ~ 30 VDC
  • Mounting: DIN, Panel
  • Power: 10-30VDC
  • Isolation: 4kV
  • Safety: CE, FCC, UL/cUL 60950-1, Class I, Division 2
  • Isolation: 4,000 VDC
  • ESD Protection: 8 kV (Contact) ; 15 kV (Air)
  • Standard: USB 2.0
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Connector Type: Type B (Female) High Retention
  • Standard: USB 2.0
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Connector Type: Type A (Female) High Retention
  • Supply Current: 500mA for each downstream port
  • Enclosure (Metal): Metal
  • Mounting: DIN
  • Expands one USB port to 4 USB ports (USB 2.0)
  • 4 kV Isolation & ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B Protection
  • Data rate: 12 Mbps at high speed
  • Wide operating temperature: -40 to +80 °C
  • Rugged metal case - desk, DIN rail or panel mount (brackets included)
  • High retention USB port connectors
  • FCC, CE, UL, KCC, EMC heavy industrial
  • USB cable included, 1.8 m
  • External power source required (not included, sold separately)
A 4-port USB 2.0 hub, is designed and tested to heavy industrial EMC standards and is UL C1/D2 rated. 4kV isolation between upstream and downstream ports. High retention USB ports hold standard cables tight. 12 Mbps at high speed. USB cable included. External power source required, sold separately.
