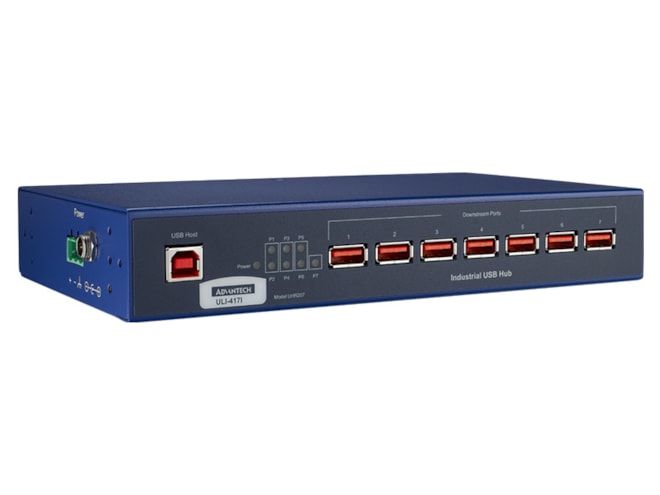

Advantech BB-UHR207

ULI-417I USB 2.0 Hub, 7 Port, Industrial.

$356.00
Part Number
  • BB-UHR207
Highlights...

Features

  • ESD Protection: 15 kV
  • Power Input (DC): 10 ~ 30 VDC
  • Safety: UL508, Class 1 Division 2
  • Standard: USB 2.0
  • Maximum Transfer Rate: Hi-Speed (480 Mbps)
  • Connector Type: Type B (Female) High Retention
  • Standard: USB 2.0
  • Maximum Transfer Rate: Hi-Speed (480 Mbps)
  • Connector Type: Type A (Female) High Retention
  • Supply Current: 500mA for each downstream port
  • Enclosure (Metal): Metal
  • Mounting: DIN
  • Expands one USB port to 7 USB ports (USB 2.0)
  • ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B
  • Data rate: 480 Mbps full speed
  • Wide operating temperature: -40 to +80 °C
  • Rugged metal case - desk, DIN rail or panel mount (brackets included)
  • FCC, CE, UL, EMC heavy industrial
  • High retention USB port connectors
  • USB cable included, 1.8 m (6 ft)
  • External power source required (not included, sold separately)
A seven-port, industrial, non-isolated USB 2.0 hub. Designed and tested to meet heavy industrial EMC standards and UL listed for Class 1 hazardous locations, allowing operation where standard grade hubs fail. The USB hub is powered from an external 10 to 30 VDC source. Two power connectors provided.
