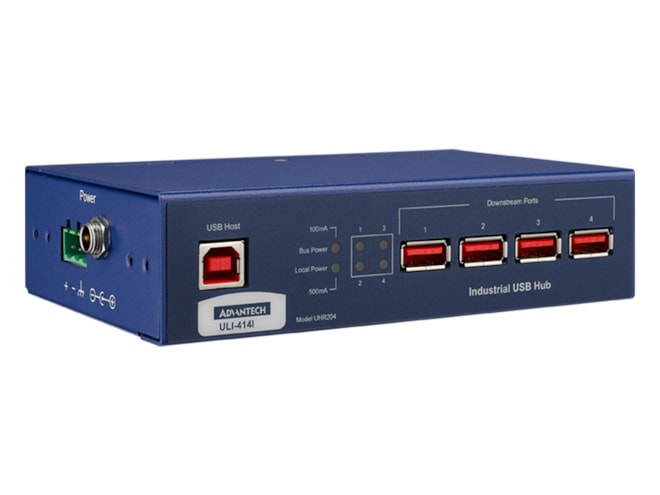

Advantech BB-UHR204

ULI-414I USB 2.0 Hub, 4 Port, Industrial.

$308.00
Part Number
  • BB-UHR204
Highlights...

Features

  • Technology: USB
  • Mounting: DIN, Panel
  • Power Input (DC): 10 ~ 30 VDC
  • Power: Bus, 10-30VDC
  • ESD Protection: 8 kV (Contact) ; 15 kV (Air)
  • Safety: UL508, Class 1 Division 2
  • Standard: USB 2.0
  • Maximum Transfer Rate: Hi-Speed (480 Mbps)
  • Connector Type: Type B (Female) High Retention
  • Standard: USB 2.0
  • Maximum Transfer Rate: Hi-Speed (480 Mbps)
  • Connector Type: Type A (Female) High Retention
  • Supply Current: 500mA for each downstream port
  • Enclosure (Metal): Metal
  • Mounting: DIN
  • Expands one USB port to 4 USB ports (USB 2.0)
  • ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B
  • Data rate: 480 Mbps full speed
  • Wide operating temperature: -40 to +80 °C
  • Rugged metal case - desk, panel or DIN rail mount (brackets included)
  • FCC, CE, UL, EMC heavy industrial
  • High retention USB port connectors
  • USB cable included, 1.8 m
  • Bus power or external power (power supply not included, sold separately)
This 4-port USB 2.0 hub is designed and tested to heavy industrial EMC standards and is UL C1/D2 rated. High retention USB ports hold standard cables tight. Data rate: 480 Mbps full speed. USB cable included.
