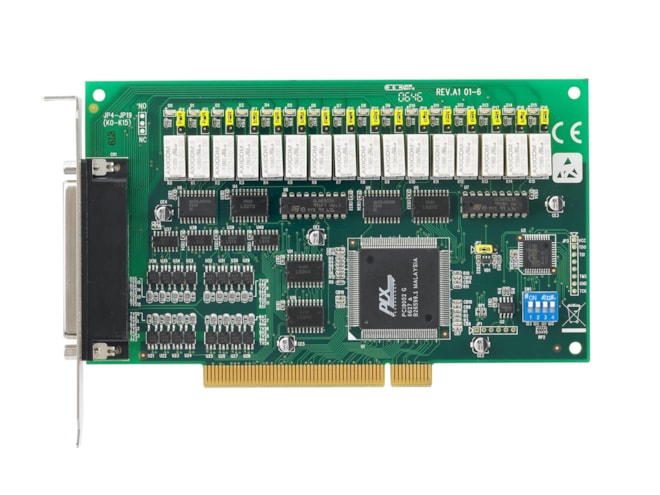

Advantech PCI-1762-BE

16-ch Relay and 16-ch Isolated Digital Input PCI Card.

$220.00
Part Number
  • PCI-1762-BE
Highlights...

Features

  • Channels: 16 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • Channels: 16 Form A
  • Contact Rating (Resistive): 0.5 A @ 30 VDC, 0.5 A @ 250 VAC
  • 16 relay output channels and 16 isolated digital input channels
  • LED indicators to show activated relays
  • Jumper selectable Form A/Form B-type relay output channel
  • Wide input range (10 ~ 50 VDC)
  • Retain relay output values when hot system reset
  • High-voltage isolation on input channels (2,500 VDC)
  • High ESD protection (2,000 VDC)
  • High over-voltage protection (70 VDC)
  • Output status read-back
  • Interrupt handling capability
  • High-density DB-62 connector
  • BoardIDâ„¢ switch
The PCI-1762 relay actuator and isolated D/I card is a PC add-on card for the PCI bus. It provides 16 opto-isolated digital inputs with isolation protection of 2,500 VDC for collecting digital inputs in noisy environments, 16 relay actuators for serving as on/off control devices or small power switches. For easy monitoring, each relay is equipped with one red LED to show its on/off status. The PCI-1762’s sixteen optically-isolated digital input channels are ideal for digital input in noisy environments or with floating potentials.
