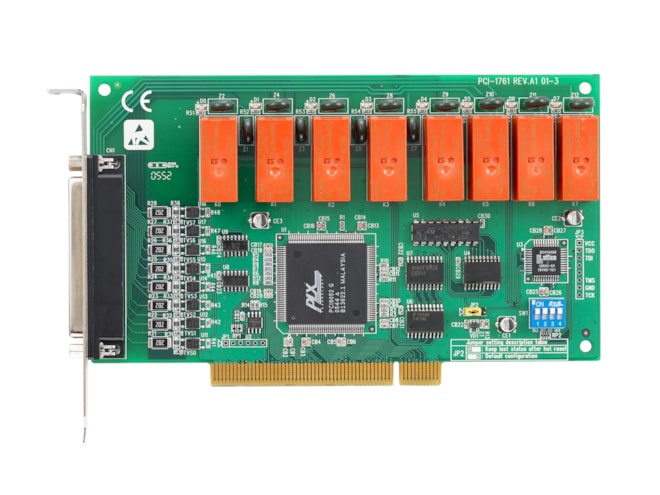

Advantech PCI-1761-BE

8-ch Relay and 8-ch Isolated Digital Input PCI Card.

$114.00
Part Number
  • PCI-1761-BE
Highlights...

Features

  • Channels: 8 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • Channels: 4 Form C, 4 Form A
  • Contact Rating (Resistive): 2 A @ 30 VDC, 2 A @ 250 VAC
  • Wide input range (10 ~ 50 VDC)
  • 8 relay output channels and 8 isolated digital input channels
  • LED indicators to show activated relays
  • 4 Form C and 4 Form A type relay output channels
  • Interrupt handling capability
  • Output status read-back
  • Retained relay output values when hot system reset
  • High-voltage isolation on input channels (3,750 VDC)
  • High ESD protection (2,000 VDC)
  • High over-voltage protection (70 VDC)
  • ISA-Compatible with PCL-725
  • Male DB37 matching connector included
  • BoardIDâ„¢ switch
The PCI-1761 relay actuator and isolated D/I card is an add-on card for the PCI bus. It provides 8 optically-isolated digital inputs with isolation protection of 3,750 VDC for collecting digital inputs in noisy environments and 8 relay actuators for serving as on/off control devices or small power switches. For easy monitoring, each relay is equipped with one red LED to show its on/off status. The PCI-1761’s eight optically-isolated digital input channels are ideal for digital input in noisy environments or with fl oating potentials.The PCI-1761 digital input channels feature a rugged isolation protection for industrial, lab and machinery automation applications. It durably withstands voltage up to 3,750 VDC,protecting your host system from any incidental harms. If connected to an external input source with surge-protection, the PCI-1761 can offer up to a maximum of 2,000 VDC ESD (Electrostatic Discharge) protection. Even with an input voltage rising up to 70 VDC, the PCI-1761 can still manage to work properly, albeit for only a short period of time.When the system has undergone a hot reset (i.e. without turning off the system power), the PCI-1761 can either retain output values of each channel, or return to its default confi guration as open status, depending on its onboard jumper setting. This function protects the system from unwanted operations during unexpected system resets.
