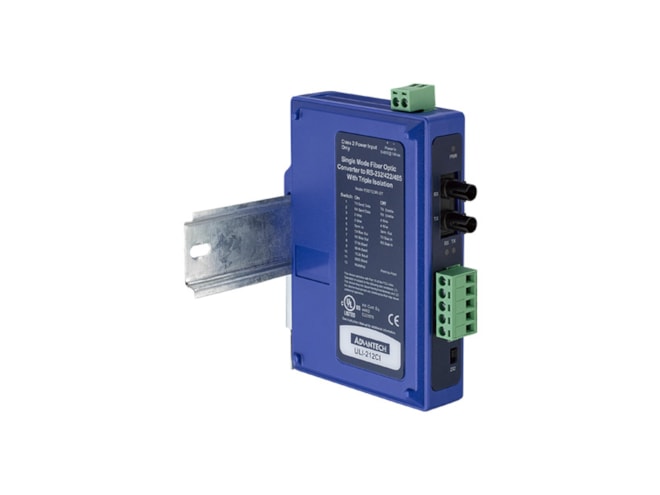

Advantech BB-FOSTCDRI-ST

ULI-212CI -Triple Isolated RS-232/422/485 (TB) to Single Mode Fiber Converter (ST).

$463.10
Part Number
  • BB-FOSTCDRI-ST
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-232 / RS-422 / RS-485
  • Mounting: DIN
  • Serial Port Connector Type: Terminal block
  • Power: 10-48VDC
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Optical Mode: Single-mode
  • Serial Type: RS-232/422/485
  • Max. Distance: 15 km
  • Serial Connector: Terminal Block
  • Optical Connector: ST
  • Fiber Type: Single-mode
  • Optical Wavelength: 1310 nm
  • Isolation: 2,000 VDC
  • Surge Protection: 600W
  • Power Input (DC): 10 ~ 48 VDC
  • Mounting: DIN
  • Converts serial data signals to single-mode fiber optic
  • 2 KV 3-way optical isolation (two data ports, power circuit) and EMI/RFI protection
  • Data rates up to 115.2 kbps
  • Wide operating temperature: -40 to +80 °C
  • IP30 plastic case, DIN mount
  • UL 508 rated
  • Up to 15 km (9 mi) range
  • Power supply not included, sold separately
Industrial-grade isolated converter changes RS-232, RS-422, or RS-485 to single-mode fiber optics. Extends serial data ranges up to 15 km and provides connection between asynchronous full or half-duplex serial equipment. Multi-drop mode capable. In RS-232 mode, supports Transmit and Receive Data.
