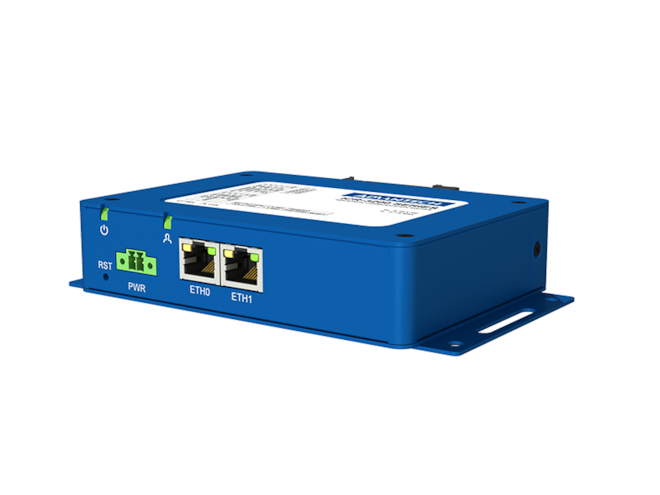

Advantech ICR-3201

ICR-3200, Global LAN, 2x Ethernet, 1x RS232, 1x RS485, Metal, Without Accessories.

$482.00
Part Number
  • ICR-3201
Highlights...

Features

  • Global: Yes
  • I/O: 1 x DI + 1 x DO
  • Power Input (DC): 9 ~ 48 VDC
  • Sleep Mode: Yes
  • Operating Humidity: 0~95%
  • Dimensions (W x H x D): 129 x 31 x 94 mm
  • Enclosure (Metal): Metal
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Advances Software Tool: WA/DMP, WA/VPN
  • LAN VPN Gateway for Industrial IoT applications
  • Powerful CPU with 1.3 GB storage to host customer SW applications
  • 2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
  • Robust metal cover with DIN and Wall mount options
  • Operational temperature range from -40 °C to +75 °C
  • Backup real time clock
  • Sleep mode & Power ignition
The ICR-3201 gateway is the perfect way to connect IP or serial devices to a LAN network via the WAN interface. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more.
