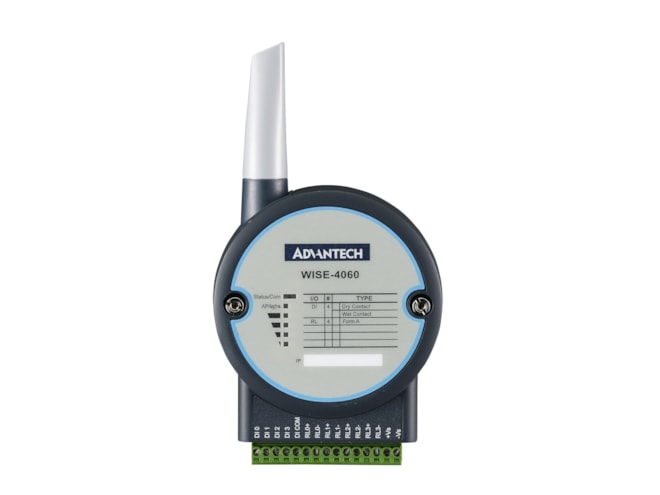

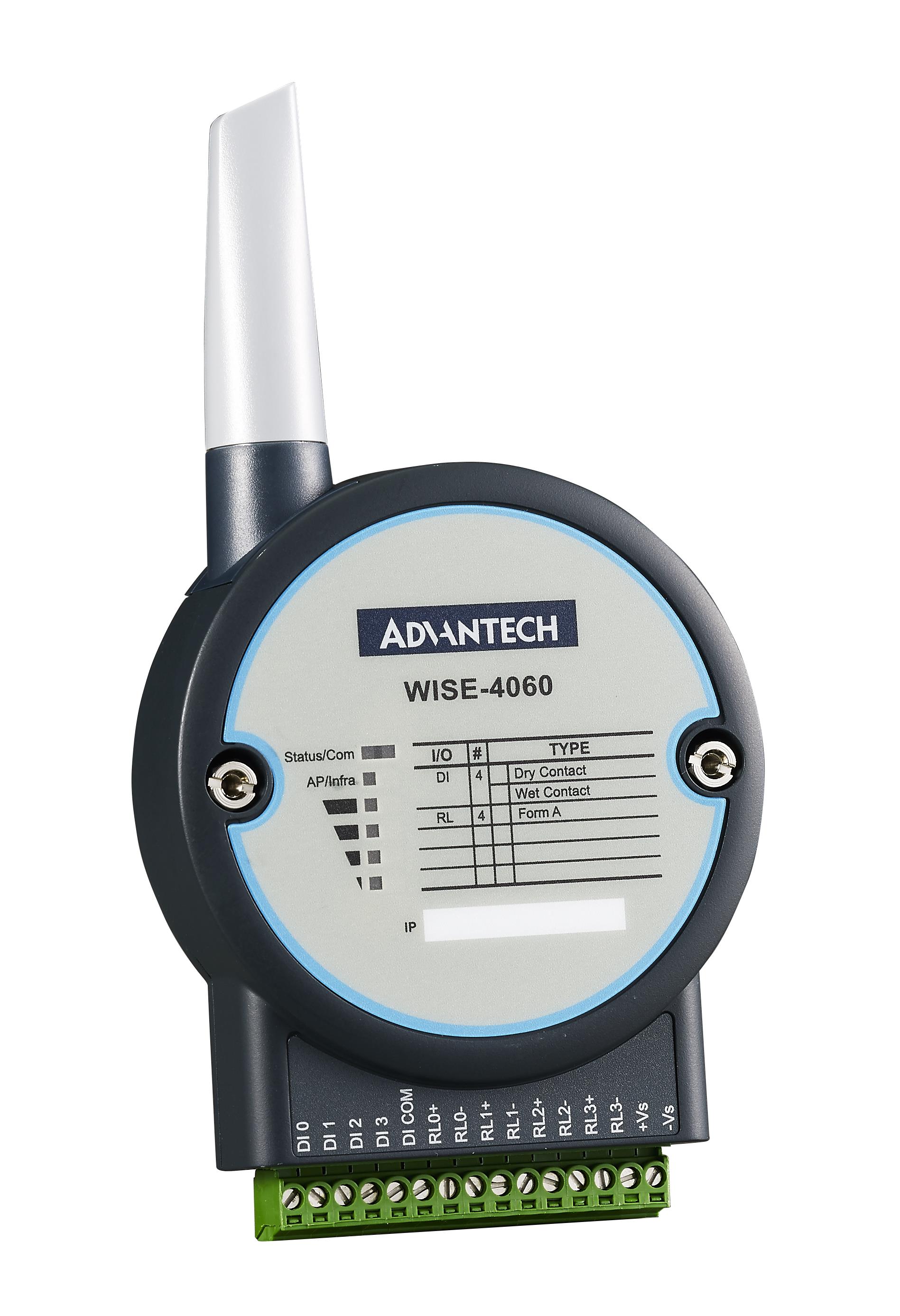

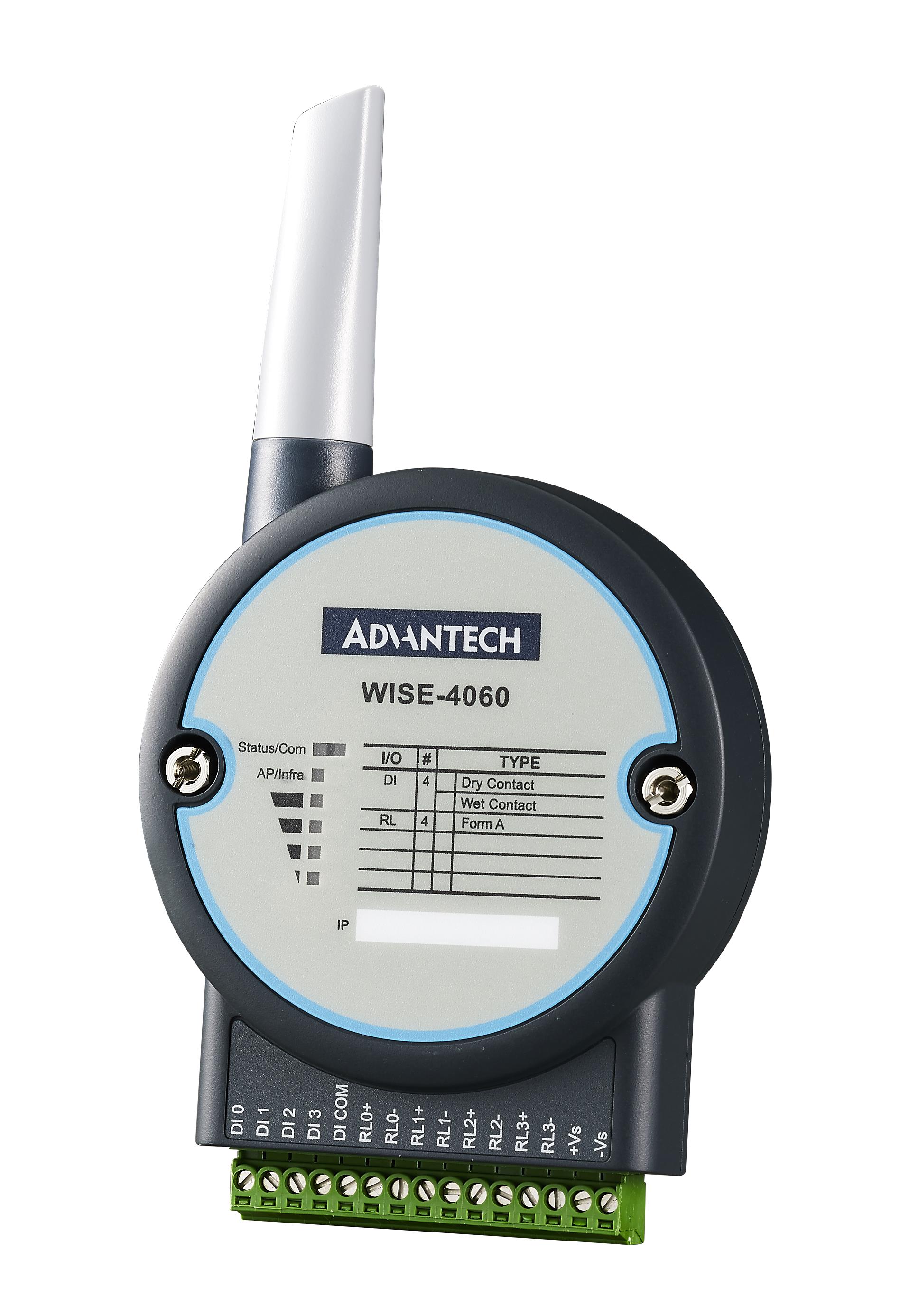

Advantech WISE-4060-B

4-ch DI and 4-ch Relay IoT Wireless I/O Module.

$205.00
Part Number
  • WISE-4060-B
Highlights...

Features

  • Channels: 4 (TTL)
  • Input Voltage: Dry Contact
  • Logic level 0: Open
  • Logic level 1: Close to DI COM
  • Wet Contact
  • Logic level 0: 0~3 VDC
  • Logic level 1: 10~30 VDC
  • Isolation Protection: 4,200 VDC
  • Relative Humidity: 20~95% RH (non-condensing)
  • Storage Humidity: 0~95% RH (non-condensing)
  • Connectors: 1 x Plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
  • Certification: CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, ANATEL
  • LED Indicators: Status, Com, AP/Station, Signal Strength
  • Power Consumption: 2.5 W @ 24 VDC
  • Power Input: 10~30 VDC
  • Watchdog Timer: 1.6 s
  • Dimension (W x H x D): 80 x 148 x 25 mm
  • Enclosure: PC
  • Mounting: DIN-rail, Wall, Stack
  • Weight (Net): 0.15 kg
  • Input Voltage: 10~30 VDC
  • Channels: 4 Form A
  • Contact Rating (Resistive): 3 A @ 30 VDC
  • Relay Type: 4 x Form A
  • Resistance: Min. 1 GΩ min.
  • Frequency Band: IEEE 802.11 b/g/n 2.4 (GHz)
  • Standard (Technology): WIFI
  • WiFi 2.4 GHz IEEE 802.11b/g/n WLAN
  • Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
  • Supports file-based cloud storage and local logging with RTC time stamp
  • ŸSupports RESTful web API in JSON format for IoT integration
  • Configured by mobile devices directly without installing software or App
Advantech's new generation of remote I/O devices bring an IT oriented spirit to the market. With the advanced concepts of data A-P-P, data Acquisition, data Processing to data Publishing, fulfilling mobile monitoring and controlling needs under an IoT framework. Broad adoptability has made WISE a reliable source of big data which benefits users in identifying their next steps and which action to take. With intelligent processing and publishing features, the time it takes to generate insightful reports can be shortened. Thus users can quickly notice and identify possible issues and system downtime can be minimized or even avoided. The WISE-4060, an IoT wireless I/O module with 4-channel digital input and 4-channel relay output, has an integrated Wi-Fi interface wuth AP mode and web configuration which can be accessed by mobile device directly. Data can be logged in the I/O module and then automatically pushed to the file-based cloud. URL: Target: New window Current window Parent window Top window OK Cancel
