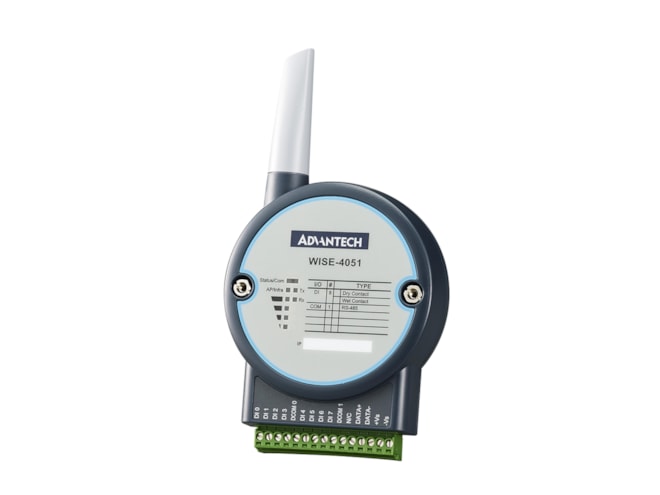

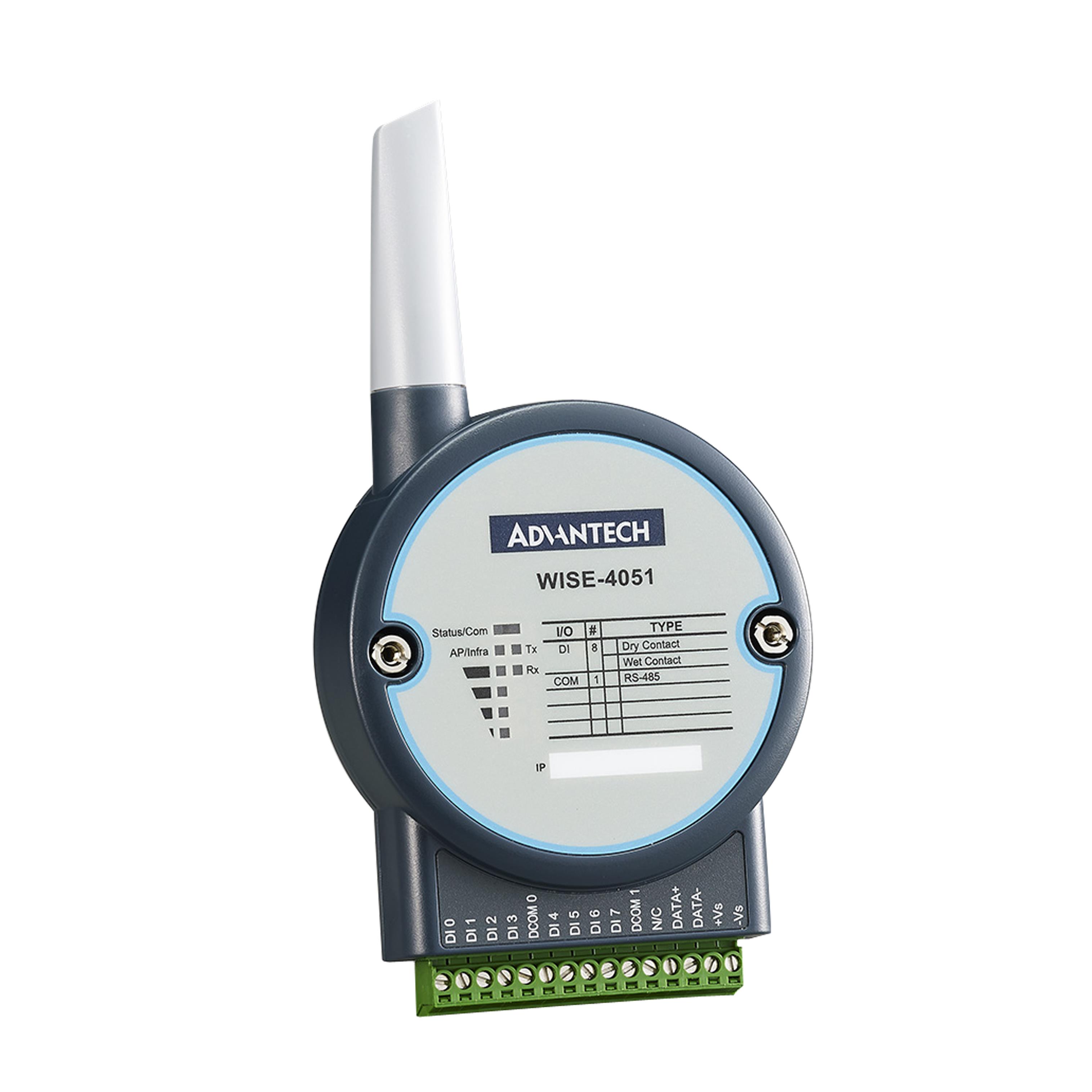

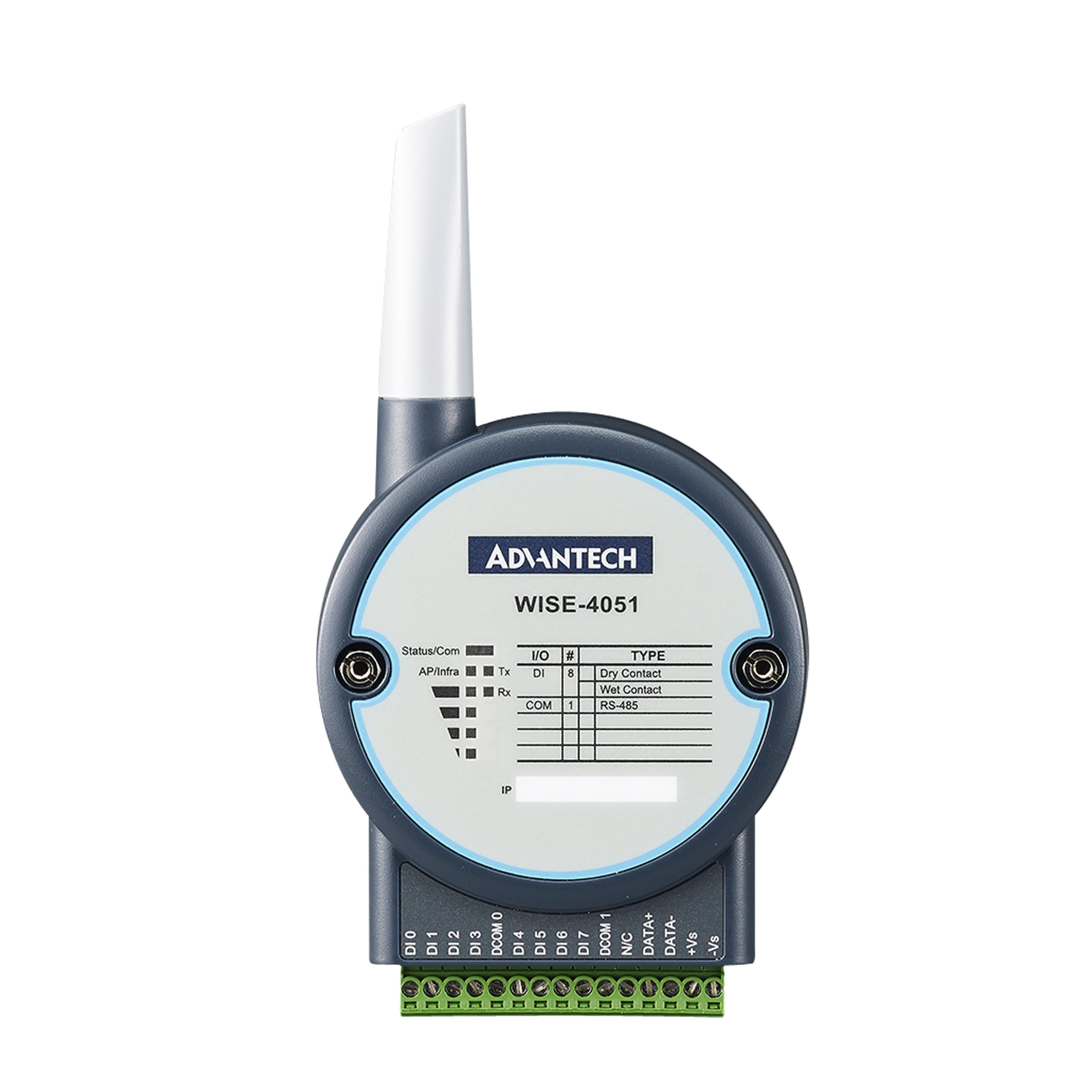

Advantech WISE-4051-B

8DI 2.4G WiFi IoT Wireless I/O with 1RS-485.

$219.00
Part Number
  • WISE-4051-B
Highlights...

Features

  • Channels: 8 (TTL)
  • Input Voltage: Dry Contact
  • Logic level 0: Open
  • Logic level 1: Close to DI COM
  • Wet Contact
  • Logic level 0: 0~3 VDC
  • Logic level 1: 10~30 VDC
  • Isolation Protection: 4,200 VDC
  • Relative Humidity: 20~95% RH (non-condensing)
  • Storage Humidity: 0~95% RH (non-condensing)
  • Connectors: 1 x Plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
  • Certification: CE, FCC Class A, R&TTE, NCC, SRRC, RoHS
  • LED Indicators: Status, Com, AP/Station, Signal Strength
  • Power Consumption: 2.2 W @ 24 VDC
  • Power Input: 10~30 VDC
  • Watchdog Timer: 1.6 s
  • Serial Ports: 1 x RS-485
  • Dimension (W x H x D): 80 x 148 x 25 mm
  • Enclosure: PC
  • Mounting: DIN-rail, Wall, Stack
  • Weight (Net): 0.15 kg
  • Input Voltage: 10~30 VDC
  • Baud Rate (bps): 1200 bps~115.2 kbps
  • Data Bits: 7, 8
  • Data Signals: RS-485: DATA+, DATA-
  • Parity: None, Even, Odd
  • Stop Bits: 1, 2
  • Frequency Band: IEEE 802.11 b/g/n 2.4 (GHz)
  • Standard (Technology): WIFI
  • WiFi 2.4 GHz IEEE 802.11b/g/n WLAN
  • Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
  • Supports file-based cloud storage and local logging with RTC time stamp
  • Supports RESTful web API in JSON format for IoT integration
  • Configured by mobile devices directly without installing any software or App
The WISE-4000 series is an Ethernet-based wireless IoT device, integrated with IoT data acquisition, processing, and publishing functions. As well as various I/O types, the WISE-4000 series provides data pre-scaling, data logic, and data logger functions. These data can be accessed via mobile devices and be published to the cloud with security at anytime and anywhere.
