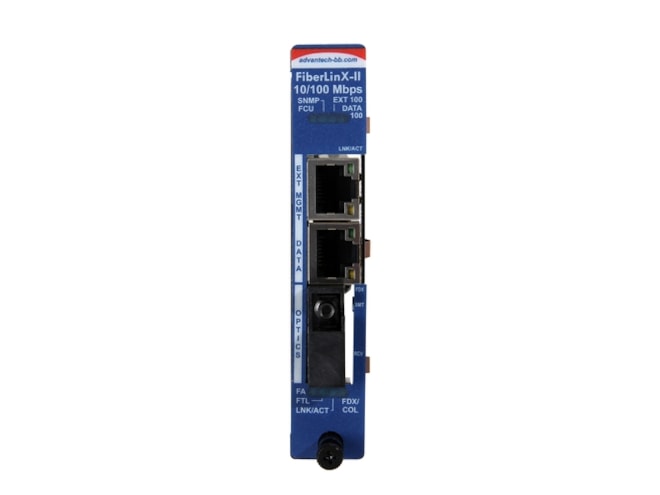

Advantech IMC-762-SST

Managed Modular Media Converter, 100Mbps, Single-Strand 1310xmt, 20km, SC (also known as iMcV 856-14043).

$518.70
Part Number
  • IMC-762-SST
Highlights...

Features

  • Fiber Transmission Speed: 10/100 Mbps
  • Fiber Port Optical Mode: Single-Strand
  • Fiber Transmission Wavelength: 1310T / 1550R
  • Fiber Transmission Distance: 20 km
  • Fiber Port Connector Type: SC Type
  • Dimensions (W x H x D): 2.0 x 10.74 x 7.05 cm (0.78 x 4.19 x 2.75 in.)
  • Weight: 0.11 kg (0.24 lbs)
  • Operating Temperature: 0 ~ 50 °C (32 ~ 122°F)
  • Operating Humidity: 5~95% (non-condensing)
  • Safety: UL/cUL
  • EMC: CE, FCC Class A, CB, CSA
  • SNMP manageable
  • OAM IEEE802.3ag/ah (operation, administration, and management)
  • Supports per-port, bi-directional bandwidth control
  • Supports powerful LinkLoss, FiberAlert and Loopback troubleshooting functions
  • All management traffic remains isolated from the remote LAN
  • The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
The IMC-760 series intelligent media converter connects a host/remote Ethernet network over a fiber optic or CAT5 copper connection. It combines media conversion with an advanced-feature set for network management and troubleshooting, including OAM (operation, administration and management). Administrators can observe the end-points over the fiber segment between them as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a cost-effective solution. The SNMP software, iView2, allows for remote configuration and alerts administrators to any potential problems on the long-haul fiber run, providing vital information on link condition and reporting data traffic statistics. With iView2, the central location can manage all host/remote pairs installed in the IMC-71x series with the single IP address of the chassis.
