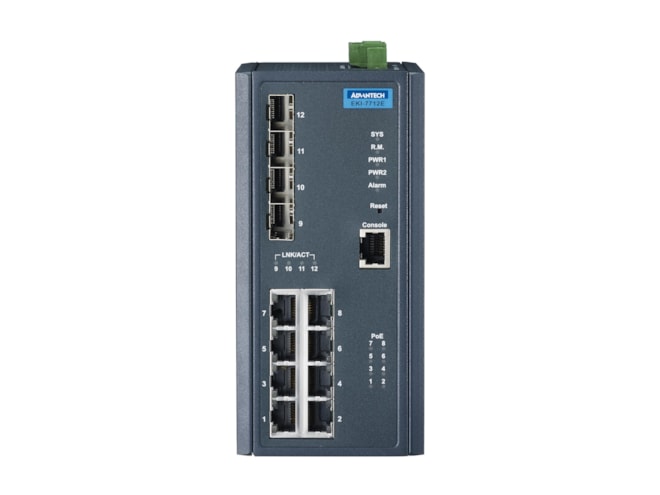

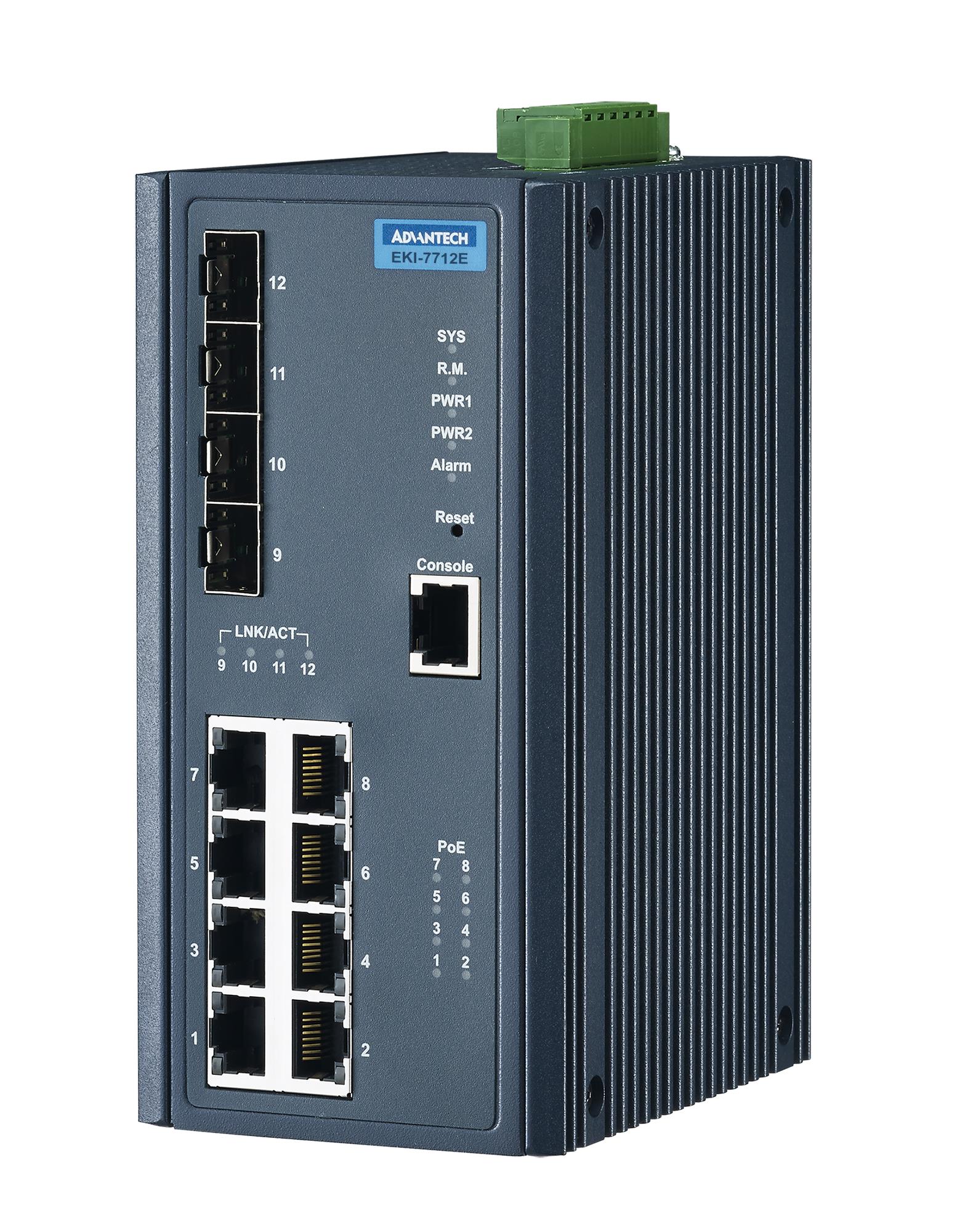

Advantech EKI-7712E-4FPI-AE

8+4G port Gigabit Ethernet Ethernet Switch with 8 PoE+ port,-40~75℃.

$1,475.17
Part Number
  • EKI-7712E-4FPI-AE
Highlights...

Features

  • RJ-45 Port Connector Type: 8 x RJ-45, 4 x SFP
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Power Input (DC): 48 VDC
  • Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
  • RJ-45 Transmission Distance: 100 m
  • Fiber Transmission Distance: Up to 110 km
  • MAC Table Size: 8K
  • Packet Buffer Size: 4.1M bit
  • Switch Fabric Speed: 9.6Gbps
  • Jumbo Frame: 9,216 bytes
  • Dimensions (W x H x D): 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
  • IP Rating: IP30
  • Enclosure (Metal): Metal
  • Weight: 1.1 kg
  • Mounting: DIN-rail, Wall
  • Relative Humidity: 10~95%
  • Time: 1,001,782 hours
  • Method: Telcordia(Relax), GB
  • Power Operating Current: 0.25A @ 48VDC (system)
  • Power Consumption: 12.1W (system)
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • EMI: CE, FCC Class A
  • Safety: UL 61010
  • EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6
  • Warranty Period: 5 years
  • Place of production: China
  • 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • Dual 48 V DC power input and 1 relay output
EKI-7712E-4FP/4FPI supports 8 Fast Ethernet IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device) requirements. They are embedded with Advantech’s IXM function, which can benefit users for fast deployment and can dramatically save engineers time and cost. The EKI-7712E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712E-4FPI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications. EKI-7712E-4FP/4FPI has successfully passed the EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.
