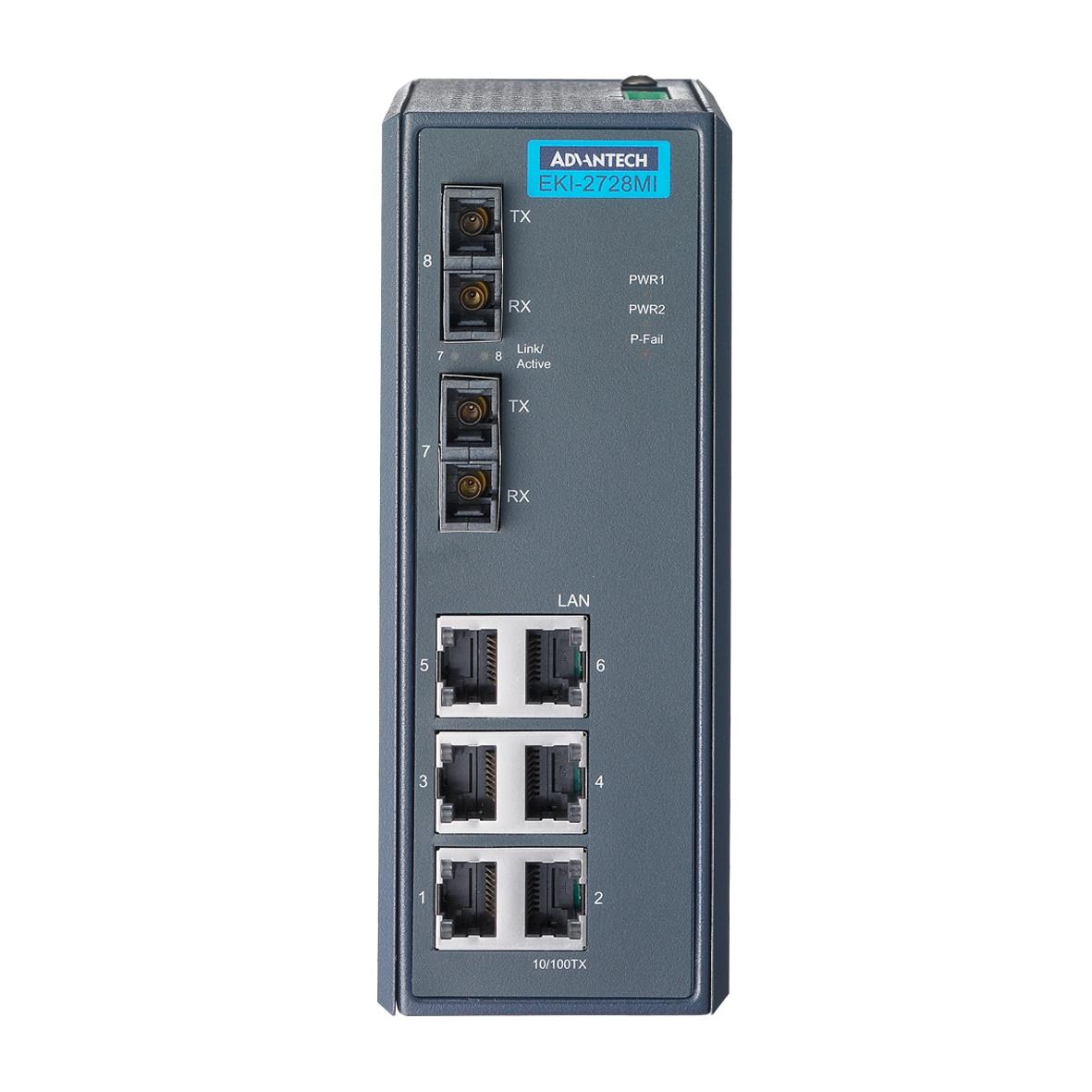

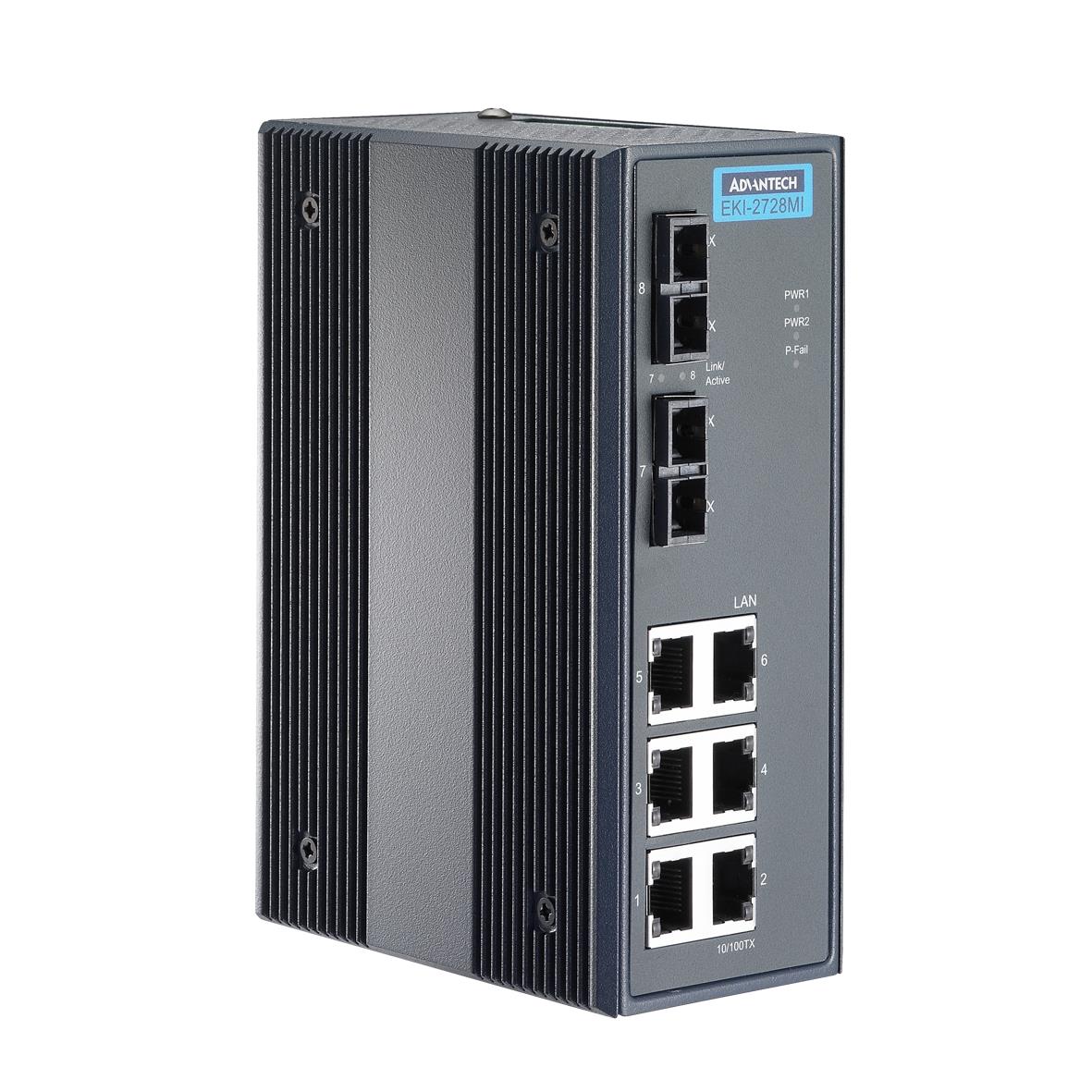

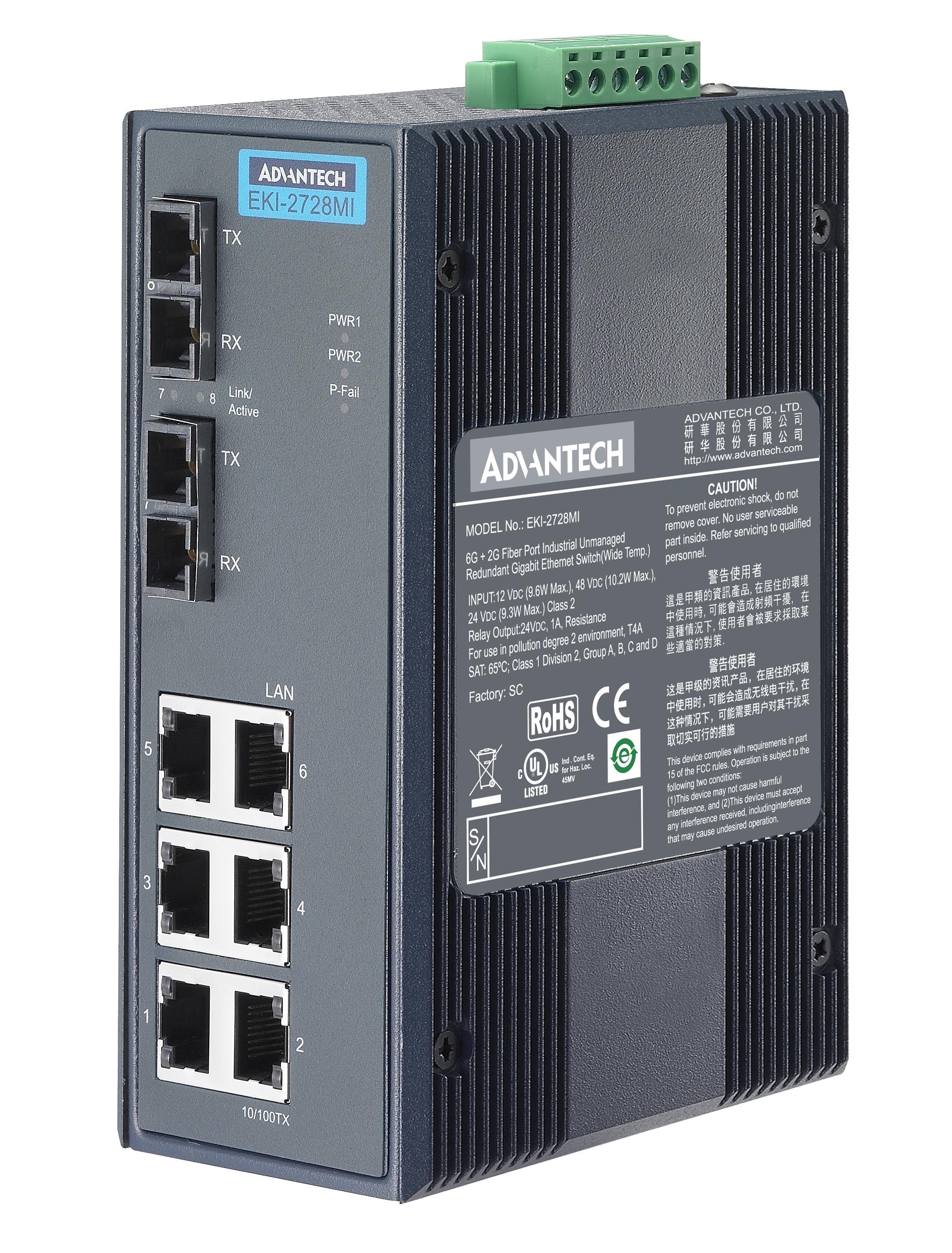

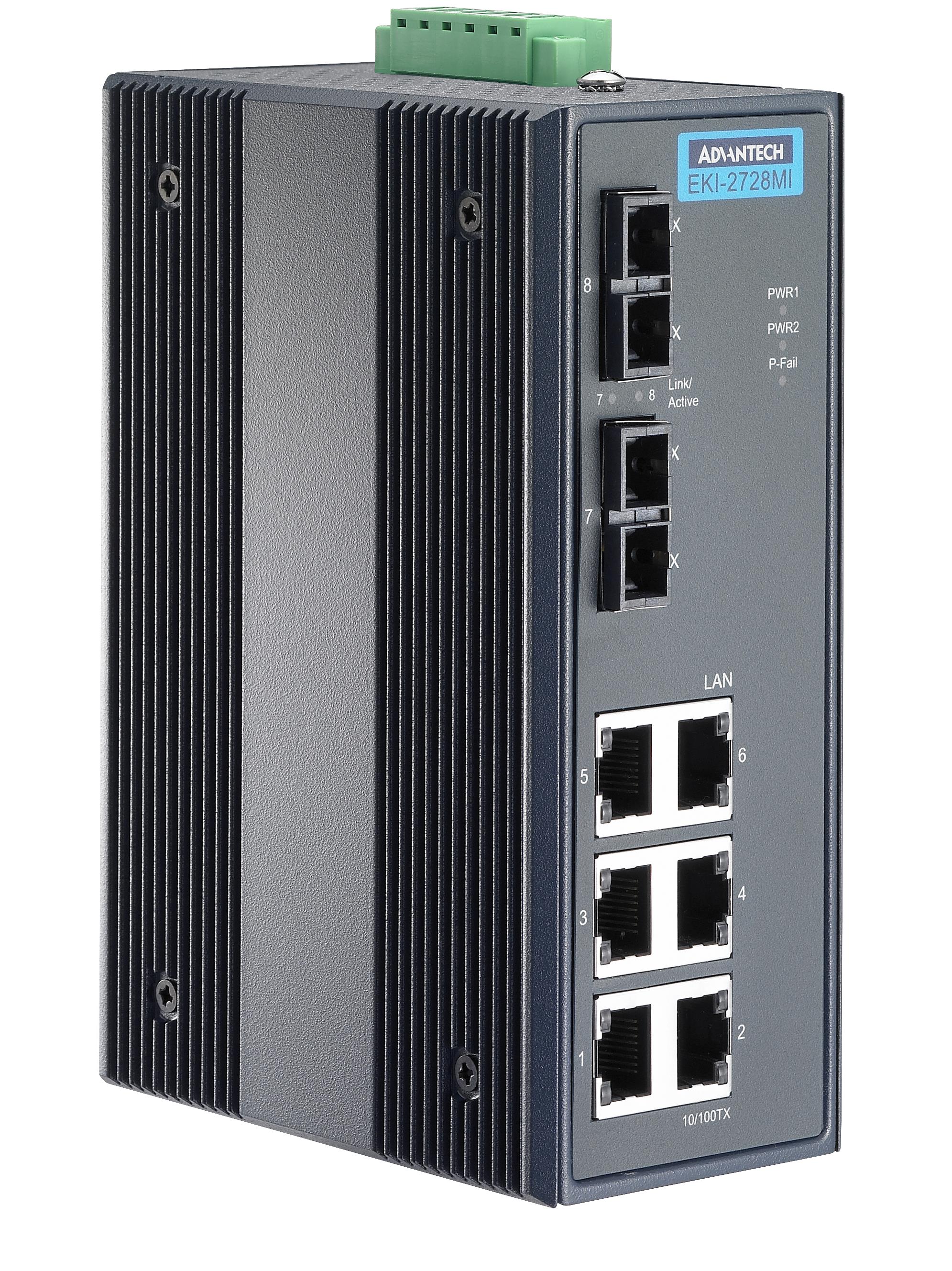

Advantech EKI-2728MI-BE

Features

• EMI: CE, FCC Class A
• EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• Temperature (Max. Operating): 75°C (167°F)
• Fiber Port Interface: Multi-Mode
• Fiber Port Connector Type: SC Type
• Fiber Transmission Distance: Up to 550 m
• Fiber Transmission Speed: 1000 Mbps
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Distance: 100 m
• RJ-45 Transmission Speed: 10/100/1000 Mbps
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Dimensions (W x H x D): 59.6 x 152 x 105 mm (2.35 x 5.98 x 4.13 in.)
• IP Rating: IP30
• Support PoE: No
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• Power Consumption: Max. 7W
• Power Input (AC): 24 VAC
• Power Input (DC): 12 ~ 48 VDC
• Power Operating Current: 1A @ 24 VDC
• Redundant Dual Inputs: Yes
• Warranty Period: 5 years
• Overload Current: Present
• Reverse Polarity: Present
• 6 Gigabit Ethernet ports with auto negotiation and 2 Gigabit fiber optic ports
• Supports jumbo frame transmission up to 9k bytes
• Provides slim size, DIN-rail with IP30 metal mechanism
• Supports 5.49% power consumption
• Redundant DC power supply and one removable AC power input
