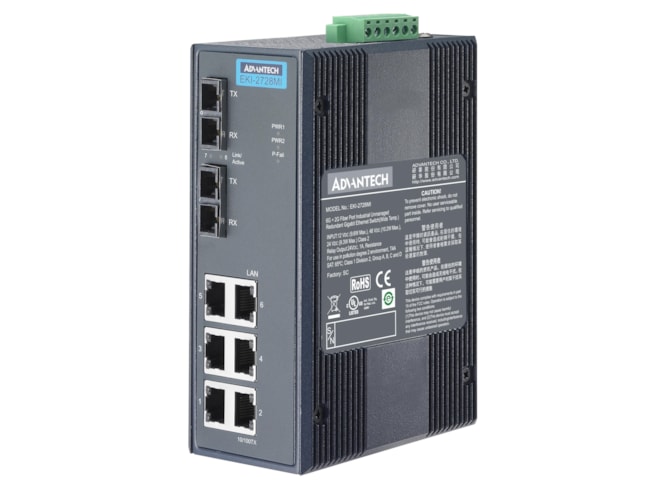

Advantech EKI-2728M-BE

Features

• EMI: CE, FCC Class A
• EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• Temperature (Max. Operating): 60°C (140°F)
• Fiber Port Interface: Multi-Mode
• Fiber Port Connector Type: SC Type
• Fiber Transmission Distance: Up to 550 m
• Fiber Transmission Speed: 1000 Mbps
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Distance: 100 m
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Dimensions (W x H x D): 59.6 x 152 x 105 mm (2.35 x 5.98 x 4.13 in.)
• IP Rating: IP30
• Support PoE: No
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• Power Consumption: Max. 7W
• Power Input (AC): 24 VAC
• Power Input (DC): 12 ~ 48 VDC
• Power Operating Current: 1A @ 24 VDC
• Redundant Dual Inputs: Yes
• Warranty Period: 5 years
• Overload Current: Present
• Reverse Polarity: Present
• Provides 6 x 10/100/1000 Mbps Ethernet port with RJ45 connector
• Provides 2 x 1000 Mbps fiber port with SC type connector for 1000Base-SX/LX device
• Supports MDI/MDI-X auto crossover
• Supports Auto-Negotiation
• Supports redundant 12 ~ 48 VDC and 24VAC power input
• Provides flexible mounting: DIN-rail and Wall mount
• Provides Link Fault Pass-through (LFP)
• Jumbo Frame: 9216 bytes
