Name: Advantech EKI-9516G-4GMW-AE
Price: 3412.5 USD
Availability: BackOrder

Advantech EKI-9516G-4GMW-AE — Advantech-EKI-9516G-4GMW-AE

$3,412.50

Part Number

EKI-9516G-4GMW-AE

Highlights...

EKI-9516G-4GMW-AE
By Advantech
FREE Shipping
Call for availability

Features

Jumbo Frame: 9,216 bytes
MAC Table Size: 8K
Packet Buffer Size: 4.1M bit
Switch Fabric Speed: 32Gbps
EMC: CE, EN55032/24, EMC DIRECTIVE 2014/30/EU
EMI: CISPR 32, FCC Part 15 Subpart B Class A
EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3)
Vertical Market: EN50155, EN50121-3-2, EN61000-6-2
Freefall: IEC 60068-2-31
Shock: IEC 61373
Vibration: IEC 61373
Relative Humidity: 5~95%
Dimensions (W x H x D): 254 x 174 x 64.5 mm
Enclosure (Metal): Aluminum die-casting
IP Rating: IP67
Mounting (Wall): Yes
Weight: 3.7 kg
Power Connector Type: M23
Power Consumption: 17W (system)
Power Input (DC): 24/ 28/ 36/ 48/ 72 / 96 / 110 VDC
Power Operating Current: 0.15A @ 110VDC (system)
Power Operating Voltage: 16.8 ~ 137.5 VDC
Reverse Polarity: Present
Redundant Dual Inputs: Yes
Overload Current: Present
Warranty Period: 5 years
12 x M12 X-Coded 10/100/1000 Mbps ports + 4 x M12 X-Coded 10/100/1000 Mbps Byapss ports
Complies with EN50155 & EN50121-3-2
Operating temperature: -40 ~ 75Â°C
Operating power input range: 16.8~137.5VDC
Supports X-Ring Pro for rapid and predictable convergence
Supports IXM for fast and easy maintenance
Supports N-Key for quick configuration and backup
M12 connector with IP67 rugged housing

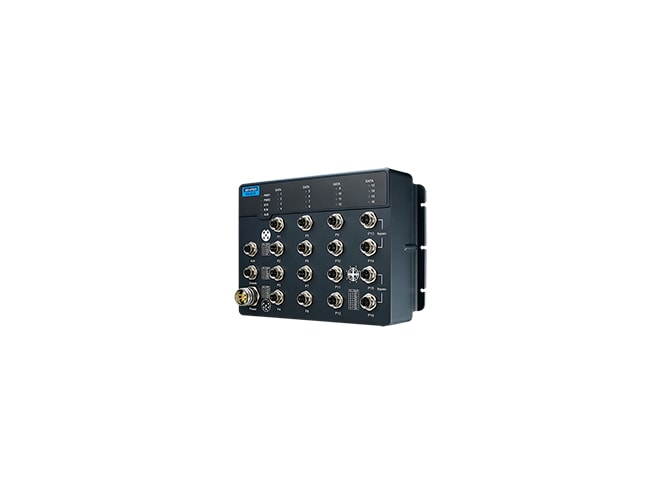

The EKI-9516 series Ethernet switch is designed for railway applications with rugged housing and high EMC performance. The EKI-9516 series is a suitable networking solution for rolling stock and wayside applications.
