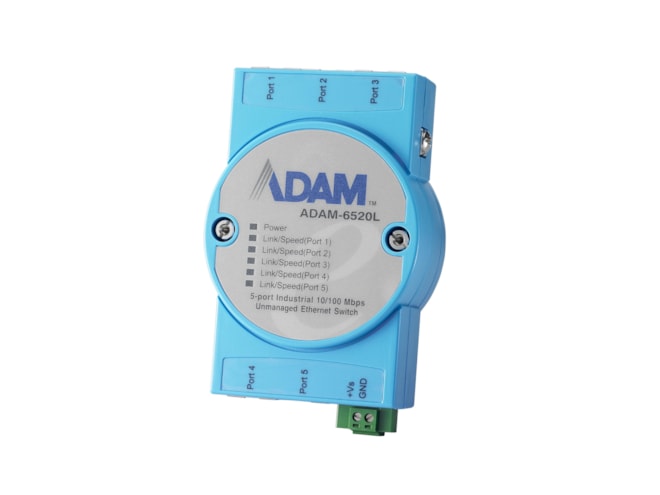

Advantech ADAM-6520L-AE

5 10/100Mbps Unmanaged Ethernet Switch, Flexible mounting, 0~60℃.

$100.17
Part Number
  • ADAM-6520L-AE
Highlights...

Features

  • Mounting: DIN, Panel
  • Power: 10-30VDC
  • Technology: Ethernet
  • Temperature: 0 to 60C
  • Unmanaged: Yes
  • EMI: CE, FCC
  • Safety: UL/cUL 60950-1
  • Temperature (Min. Operating): 0°C (32°F)
  • Temperature (Max. Operating): 60°C (140°F)
  • Operating Temperature: 0 ~ 60°C (32 ~ 140°F), Stack: 0 ~ 50°C (32 ~ 122°F)
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Stack): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 70 x 112 x 27 mm
  • Enclosure (Plastic): Yes
  • IP Rating: IP30
  • Support PoE: No
  • Power Connector Type: 2-pin removable screw terminal
  • Power Consumption: 3W
  • Power Input (DC): 1 x Unregulated 10 ~ 30 VDC
  • Warranty Period: 2 years
  • Supports full/half duplex flow control
  • Supports MDI/MDI-X auto crossover
  • Provides broadcast storm protection
  • Embedded with a switch controller, supports auto-negotiation
  • Supports +10~30 VDC for power input
  • Provides surge protection 3,000 VDC for power line
  • Provides flexible mounting: DIN-rail, Wall, Stack
ADAM-6520L is a 5-port Industrial 10/100 Mbps Unmanaged Ethernet Switch, which substitutes ADAM-6510, which is being phased-out. With ADAM-6520L, users can upgrade their 10 Mbps hub to a 10/100 Mbps switch, for a small cost. The ADAM-6520L supports +10~30 VDC for power input.
