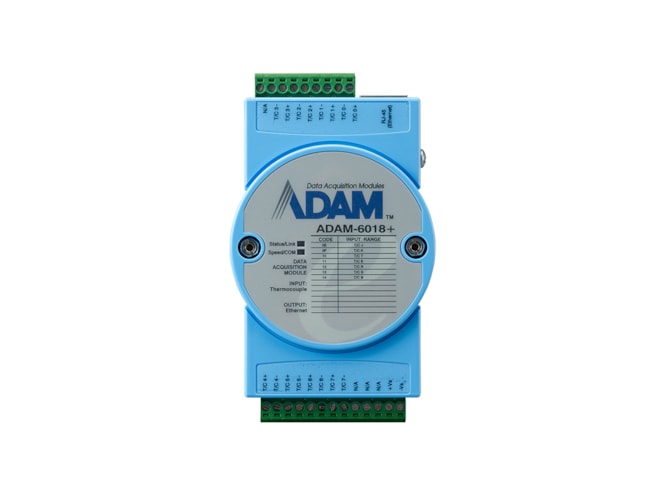

Advantech ADAM-6018+-D

8Thermocouple IoT Modbus/SNMP/MQTT Ethernet Remote I/O.

$431.60
Part Number
  • ADAM-6018+-D
Highlights...

Features

  • Interface: Ethernet
  • Isolation Voltage: 2,000 VDC
  • Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
  • Input Voltage: 10~30 VDC
  • Sample Range: 10 S/s (sum)
  • Temperature Range: Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C)
  • 8ch thermocouple
  • Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
  • GCL to perform basic logic control rules
  • Peer-to-Peer function to map I/O status
  • Watchdog timer to recover the system
  • Built-in web server
ADAM-6018+ is the most prevailing temperature sensor module in environmental and facility monitoring.
