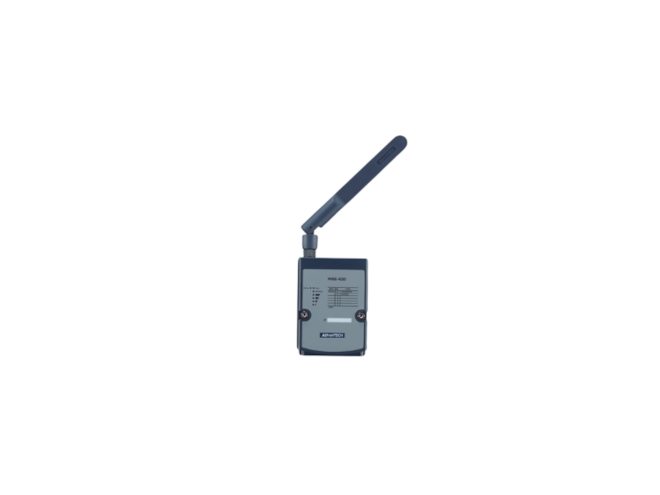

Advantech WISE-4220-A

2.4G WiFi IoT Wireless Modular I/O.

$162.00
Part Number
  • WISE-4220-A
Highlights...

Features

  • Relative Humidity: 20~95% RH (non-condensing)
  • Storage Humidity: 0~95% RH (non-condensing)
  • Connectors: 1 x Plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
  • Certification: CE, FCC Class A, IC, NCC, SRRC, RCM, VCCI, TELEC
  • LED Indicators: Status, Line-power, Wireless Com, Initial/Normal, Signal Strength
  • Power Consumption: 1.2 W @ 24 VDC
  • Power Input: 10~50 VDC
  • Watchdog Timer: 1.6 s
  • Dimension (W x H x D): 70 x 102 x 38 mm
  • Enclosure: PC
  • Mounting: DIN-rail, Wall, Pole, Stack
  • Weight (Net): 0.5 kg
  • Input Voltage: 10~50 VDC
  • Frequency Band: IEEE 802.11 b/g/n 2.4 (GHz)
  • Standard (Technology): WIFI
  • WiFi 2.4 GHz IEEE 802.11b/g/n WLAN
  • Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
  • Application-ready I/O combination with modularization design
  • Supports RESTful web API in JSON format for IoT integration
  • Supports file-based cloud storage and local logging with RTC time stamp
WISE-4000 2.4GHz series is an Ethernet-based wireless IoT device integrated with data acquisition, processing, and publishing functions. It provides data pre-scaling, data logic, and data logger functions. Data can be accessed via mobile devices and securely published to the cloud.functions.
