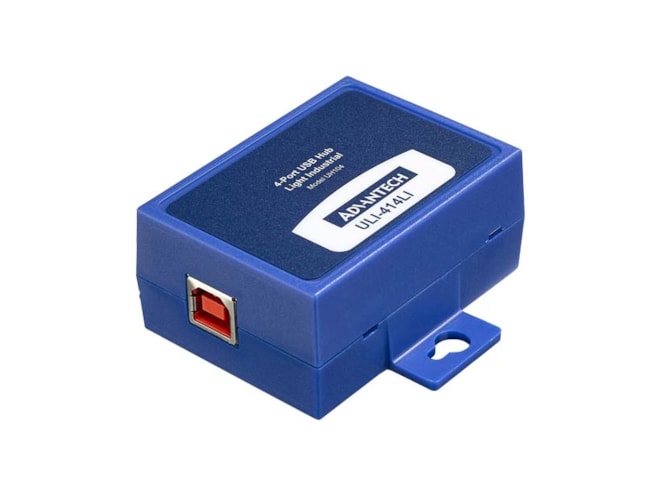

Advantech BB-UH104

ULI-414LI - Industrial USB 2.0 Hub, 4-Ports, High Retention Connectors.

$143.00
Part Number
  • BB-UH104
Highlights...

Features

  • Technology: USB
  • EMC: CE, FCC
  • Mounting: Panel
  • Power: Bus Powered
  • ESD Protection: 8 kV (Contact) ; 15 kV (Air)
  • Power Input (USB): Port-Powered from USB host (5 VDC)
  • Mounting: Inline
  • Standard: USB 2.0
  • Maximum Transfer Rate: Hi-Speed (480 Mbps)
  • Connector Type: Type B (Female) High Retention
  • Standard: USB 2.0
  • Maximum Transfer Rate: Hi-Speed (480 Mbps)
  • Connector Type: Type A (Female) High Retention
  • Supply Current: 100mA for each downstream port
  • Expands 1 USB port to 4 USB ports
  • ESD Level 4 (Contact 8 kV, Air 15 kV) Performance Criteria B
  • USB 2.0, 480 Mbps, high speed
  • Wide operating temperature (-40 to +80 °C)
  • Rugged panel mount case
  • High retention USB connectors hold cables tight
  • USB cable required - sold separately
Compact, USB 2.0 hub has 4 high-retention ports to hold standard USB cables tight. 15 kV ESD protection. USB bus powered with 100 mA to downstream peripherals. Plug-n-play - no drivers. Brackets built in for panel, counter, flat surface mounting. USB cable sold separately.
