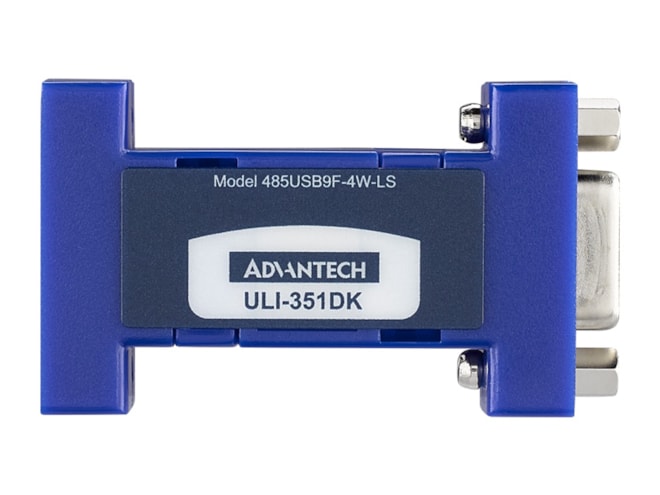

Advantech BB-485USB9F-4W-LS

ULI-351DK - USB to RS-485 4 Wire (DB9 Female) Converter Locked Serial Number.

$106.00
Part Number
  • BB-485USB9F-4W-LS
Highlights...

Features

  • Technology: USB
  • Standard: USB 2.0
  • Mounting: Inline
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Power: Bus Powered
  • Connector Type: Type B (Female)
  • Temperature: 0 to 70C
  • Locked Serial Number: Yes
  • Serial Type: RS-485 4-wire
  • Serial Standard: RS-485
  • Serial Connector: DB9 Female
  • Maximum Serial Transmission Speed: 921.6 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Power Input (USB): Port-Powered from USB host (5 VDC)
  • Mounting: Inline
  • Serial Port Connector Type: DB9 Female
  • Connect RS-485 devices to your USB port
  • Data rates: 921.6 kbps (RS-485); 12 Mbps (USB)
  • USB port powered; USB 2.0 (12 Mbps) compatible
  • Quick, convenient in-line installation
  • (1) USB cable included
  • Locked Serial Number - simplifies use in service pool
Supports 4-Wire RS-485, long range and multi-drop communication. Easy to set up with DB9 F on the RS-485. A USB cable is included. USB Port Powered.
