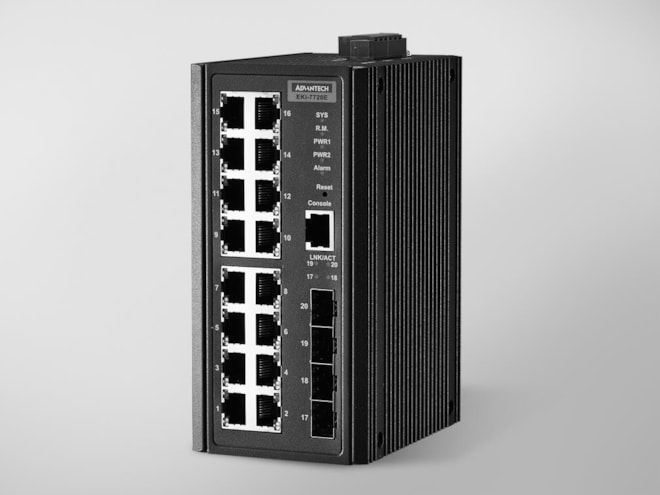

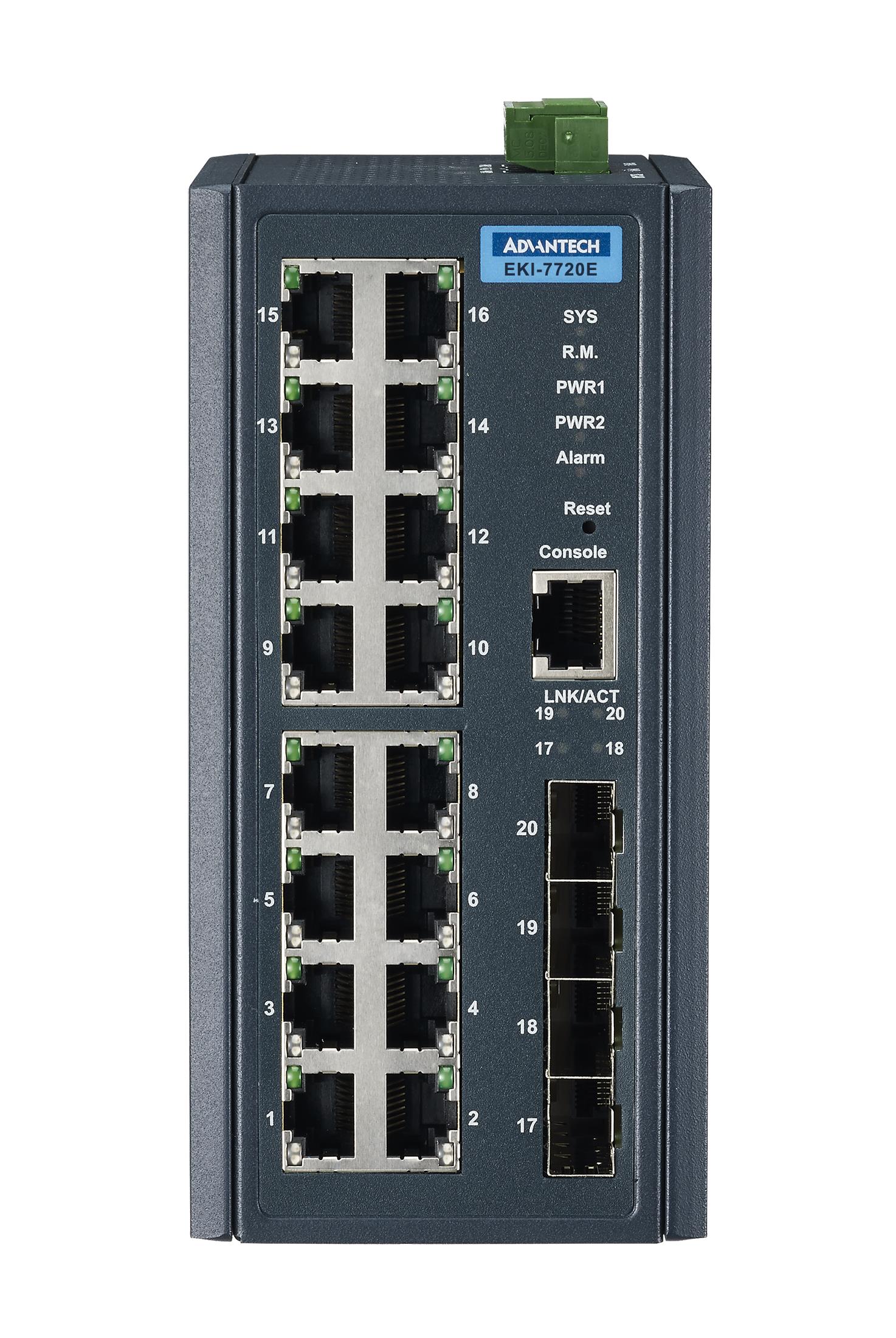

Advantech EKI-7720E-4FI-AU

16FE+4SFP Port Managed Ethernet Switch Wide Temp.

$1,186.41
Part Number
  • EKI-7720E-4FI-AU
Highlights...

Features

  • Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
  • Vibration: IEC 60068-2-6
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • EMI: CE, FCC Class A
  • EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Safety: UL 61010-2-201, EN 62368-1 (LVD)
  • Relative Humidity: 10~95%
  • Fiber Transmission Distance: Up to 110 km
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Port Connector Type: 16 x RJ-45 + 4 x SFP ports
  • RJ-45 Transmission Speed: 10/100 Mbps ; 10/100/1000 Mbps
  • Weight: 1.1 kg
  • IP Rating: IP30
  • Dimensions (W x H x D): 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
  • Method: Telcordia(Relax), GB
  • Time: TBD
  • Power Operating Current: 0.25A @ 48VDC (system)
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Input (DC): 12 ~ 48 VDC
  • Power Consumption: 12.1W (system)
  • Jumbo Frame: 9,216 bytes
  • Switch Fabric Speed: 11.2Gbps
  • Packet Buffer Size: 4.1M bit
  • MAC Table Size: 8K
  • Warranty Period: 5 years
  • 16 Fast Ethernet ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • Dual 12~48 VDC power input and 1 relay output
EKI-7720E-4F/4FI supports 16 Fast Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7720E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7720E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7720E-4FI) .
