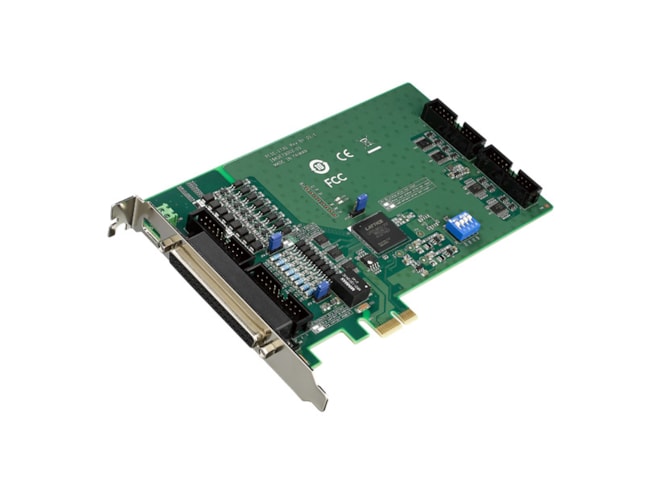

Advantech PCIE-1730-BE

32ch Iso. DIO and 32ch TTL DIO PCI Express Card.

$186.00
Part Number
  • PCIE-1730-BE
Highlights...

Features

  • Channels: 16 (Isolated), 16 (TTL)
  • Isolation Protection: 2,500 VDC
  • Channels: 16 (Isolated), 16 (TTL)
  • Isolation Protection: 2,500 VDC
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • 32-ch isolated DI/O (16-ch digital input, 16-ch digital output)
  • 32-ch TTL DI/O (16-ch digital input,16-ch digital output)
  • High output driving capacity
  • Interrupt handling capability
  • 2 x 20-pin connectors for isolated DI/O channels and 2 for TTL DI/O channels
  • D-type connector for isolated input and output channels
  • High-voltage isolation on output channels (2,500 VDC)
PCIE-1730 offers isolated digital input channels as well as isolated digital output channels with isolation protection up to 2,500 VDC, which makes them ideal for industrial applications where high-voltage isolation is required. There are also 32 TTL digital I/O channels on PCIE-1730.
