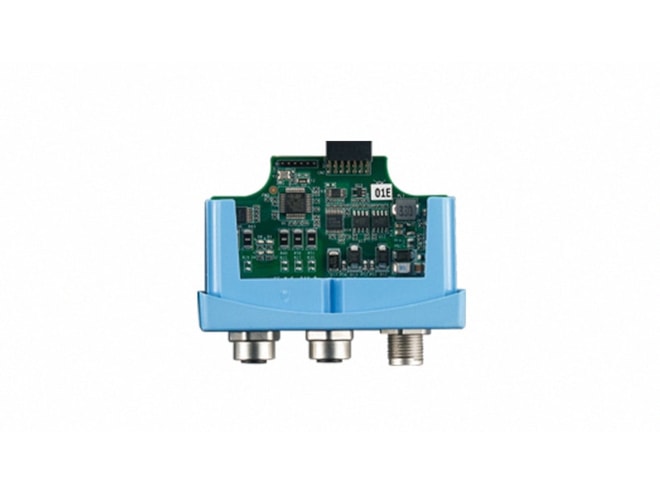

Advantech WISE-S672-A

6DI Wireless Modular I/O with 1RS-485/1RS-485 or RS-232 & M12 Connectors.

$119.00
Part Number
  • WISE-S672-A
Highlights...

Features

  • Channels: 6 (TTL)
  • Input Voltage: Dry Contact
  • Logic level 0: Open
  • Logic level 1: Close to DI COM
  • Serial Ports: 1 x RS-485, 1 x RS-485/232
  • Baud Rate (bps): 1200 bps~115.2 kbps
  • Data Bits: 7, 8
  • Data Signals: RS-485: DATA+, DATA
  • RS-232: Tx, Rx, GND
  • Parity: None, Even, Odd
  • Stop Bits: 1, 2
  • 6 digital input & 2 serial ports I/O
  • M12 connectors
  • Modular IoT I/O module to pair with WISE-4600 series
6-ch Digital Input with 2 Serial Ports
