Advantech BB-9POP4

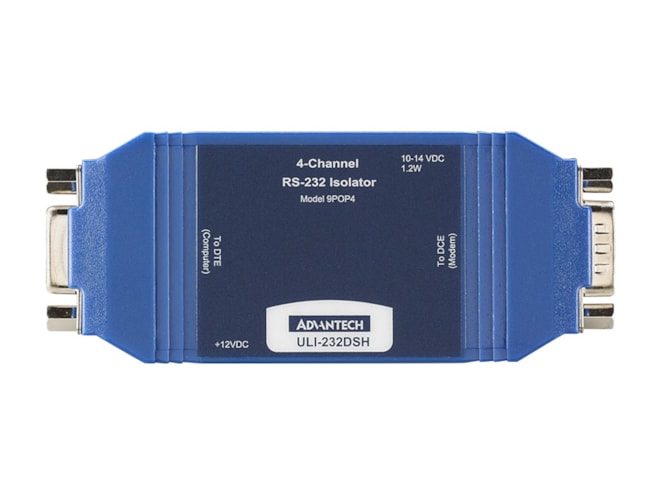

ULI-232DSH - Serial Isolator, RS-232 Data and Control Signals, DB9 F, DB9 M.

$112.90
Part Number
  • BB-9POP4
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-232
  • Mounting: Inline
  • Maximum Serial Transmission Speed: 230.4 Kbps
  • Power: 12VDC
  • Serial Port Connector Type: DB9
  • Temperature: 0 to 70C
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Isolation: 2.5kV
  • Serial Type: RS-232
  • ESD Protection: 8 kV (Air)
  • Isolation: 2,000 VDC
  • Power Input (DC): 12 VDC
  • Mounting: Inline
  • 2.5 kV isolation
  • 15kV ESD protection
  • Data rate: up to 230.4 kbps
  • Quick in-line installation
  • 12 VdcPower supply required, sold separately
Isolates and protects RS-232 equipment from storm surges, high voltage shorts and more. RS-232 data signals TD, RD, RTS, and CTS are up to 230.4 kbps. Isolation circuits are 2.5 kV rated and protects equipment. The powering configuration allows the device to be used in a system with one power supply
