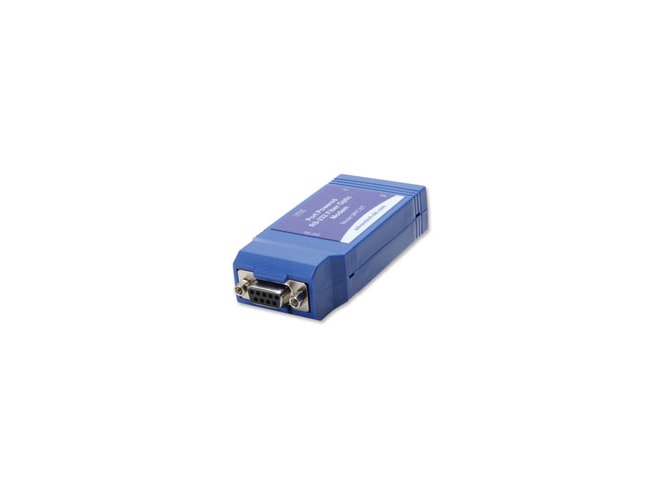

Advantech BB-9PFLST

Serial Converter, RS-232 MODEM DB9 F to MM Fiber ST.

$204.00
Part Number
  • BB-9PFLST
Highlights...

Features

  • Technology: Serial
  • Mounting: Inline
  • Power: 12VDC
  • Serial Type: RS-232
  • Serial Connector: DB9 Female
  • Fiber Type: Multi-mode
  • EMI/RFI transient immunity to surges, spikes, ground loops
  • Data rate: 115.2 kbps; up to 4 km range
  • Computers and terminals use one modem without switching
  • Quick, inline installation
  • Note: must use in pairs; one at each end of fiber transmission line
  • Port-powered, no external power required
  • Optional external powering (power supply not included, sold separately)
Allows two pieces of RS-232 asynchronous serial equipment to communicate full-duplex over two multi-mode fibers. Distances up to 2.5 miles are possible with no external power. Supports data signals up to 115.2 kbps and RTS/CTS handshake lines. Powered by the RS-232 transmit data and handshake lines.
