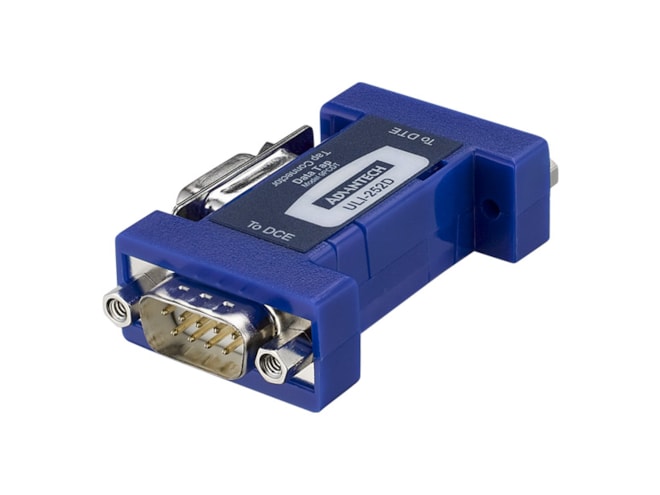

Advantech BB-9PCDT

ULI-252D - RS-232 DB9 Data Tap.

$85.00
Part Number
  • BB-9PCDT
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-232
  • Serial Port Connector Type: DB9
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Mounting: Inline
  • Monitor and record serial data streams
  • Easy to install, may be left in place
  • Transparent connections
  • No external power required
Allows an RS-232 port to tap into and check data being transmitted between two other RS-232 ports. DIP switches set programming to monitor Transmit and Receive lines individually or together. Also allows the monitoring port to be either DTE or DCE. DTE connector is male, and DCE/TAP are female.
