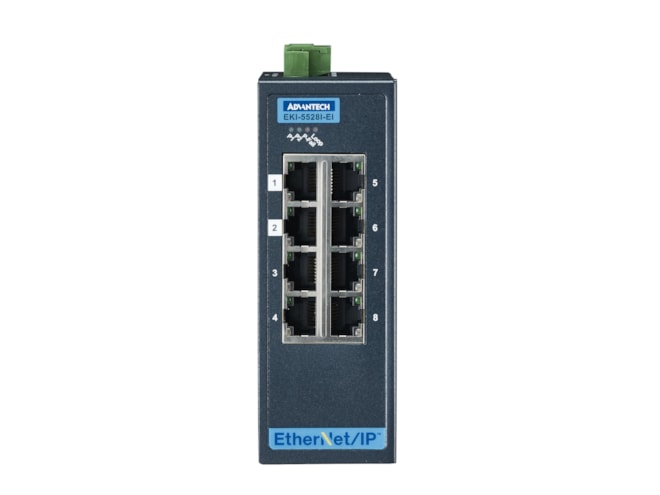

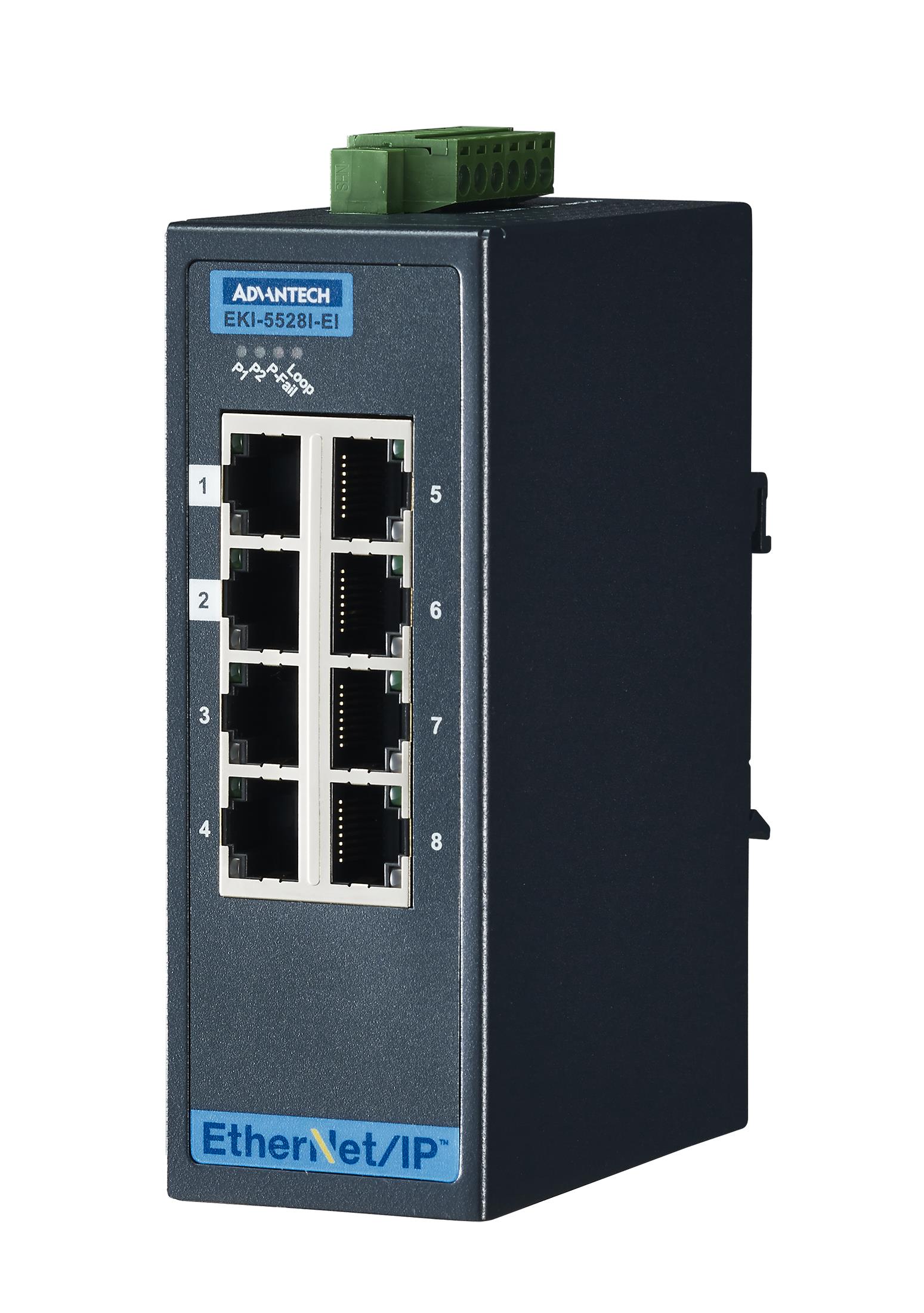

Advantech EKI-5528I-EI-AE

8 10/100Mbps Lite Managed Ethernet Switch support EtherNet/IP,-40~75℃.

$688.92
Part Number
  • EKI-5528I-EI-AE
Highlights...

Features

  • EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • EMI: CE, FCC Class A
  • Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az
  • Freefall: IEC 60068-2-32
  • Safety: UL 508
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • Relative Humidity: 10~95%
  • Temperature (Max. Operating): 75°C (167°F)
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • EtherNet/IP: Yes
  • Ethernet: Yes
  • Dimensions (W x H x D): 43 x 120 x 84 mm
  • IP Rating: IP30
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Weight: 0.50 kg (1.1 lbs)
  • Method: Telcordia(Relax), GB
  • Time: 4,176,861 hours
  • Support PoE: No
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Consumption: 5.2W (system)
  • Power Input (DC): 12 ~ 48 VDC
  • Power Operating Current: 0.1A @ 48VDC (system)
  • Reverse Polarity: Present
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 8K
  • Packet Buffer Size: 4.1M bit
  • Switch Fabric Speed: 1.6Gbps
  • Warranty Period: 5 years
  • 8 ports Fast Ethernet RJ-45 (EKI-5528/I-EI)
  • Entry-Level Managed Switch
  • IXM function enables fast deployment
  • Provides EtherNet/IP EDS (Electronic Data Sheet) file, AOI (Add-On Instructions) file, and FactoryTalk® View faceplate
  • Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
The EKI-5526/I-EI and EKI-5528/I-EI are a new generation of entry-level managed switch products. They support the EtherNet/IP protocol to communicate with Ethernet/IP based PLCs. Advantech also provides the FactoryTalk® View compliant faceplate, so users can easily integrate the switch with Allen-Bradley® PLCs. "Electronic Data Sheet" (EDS files) are also available for users to customize faceplate. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.
