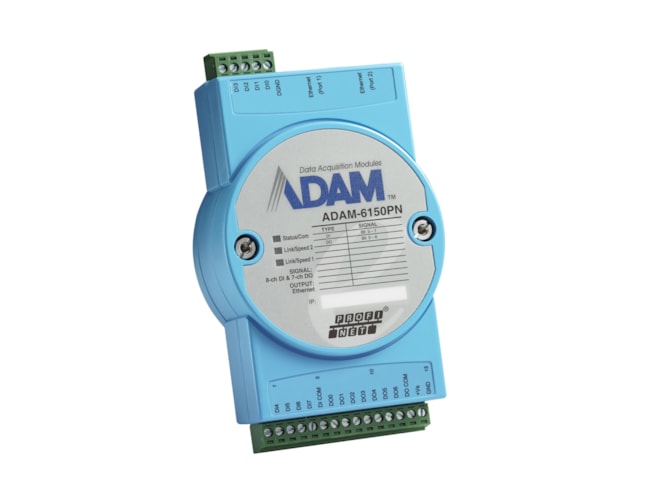

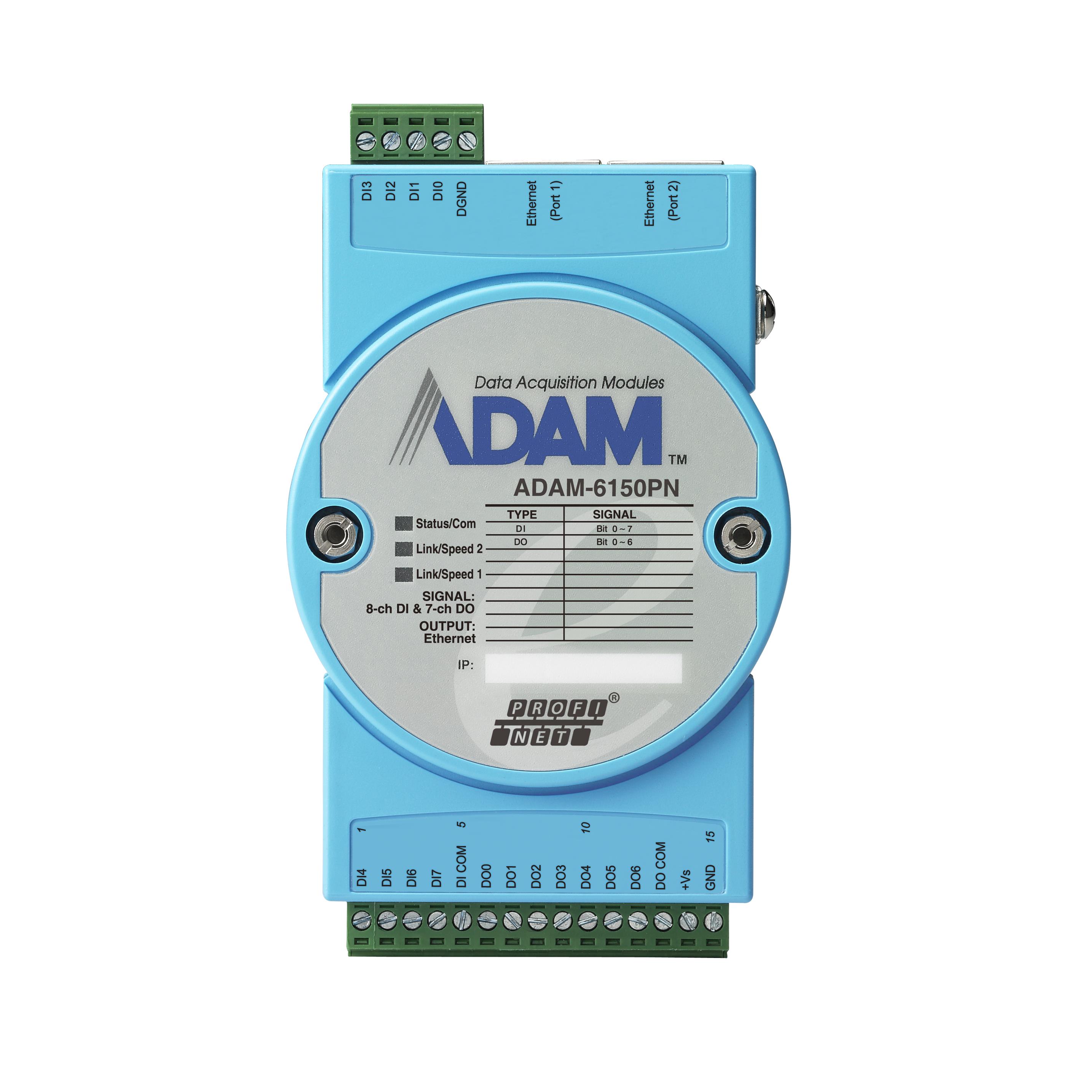

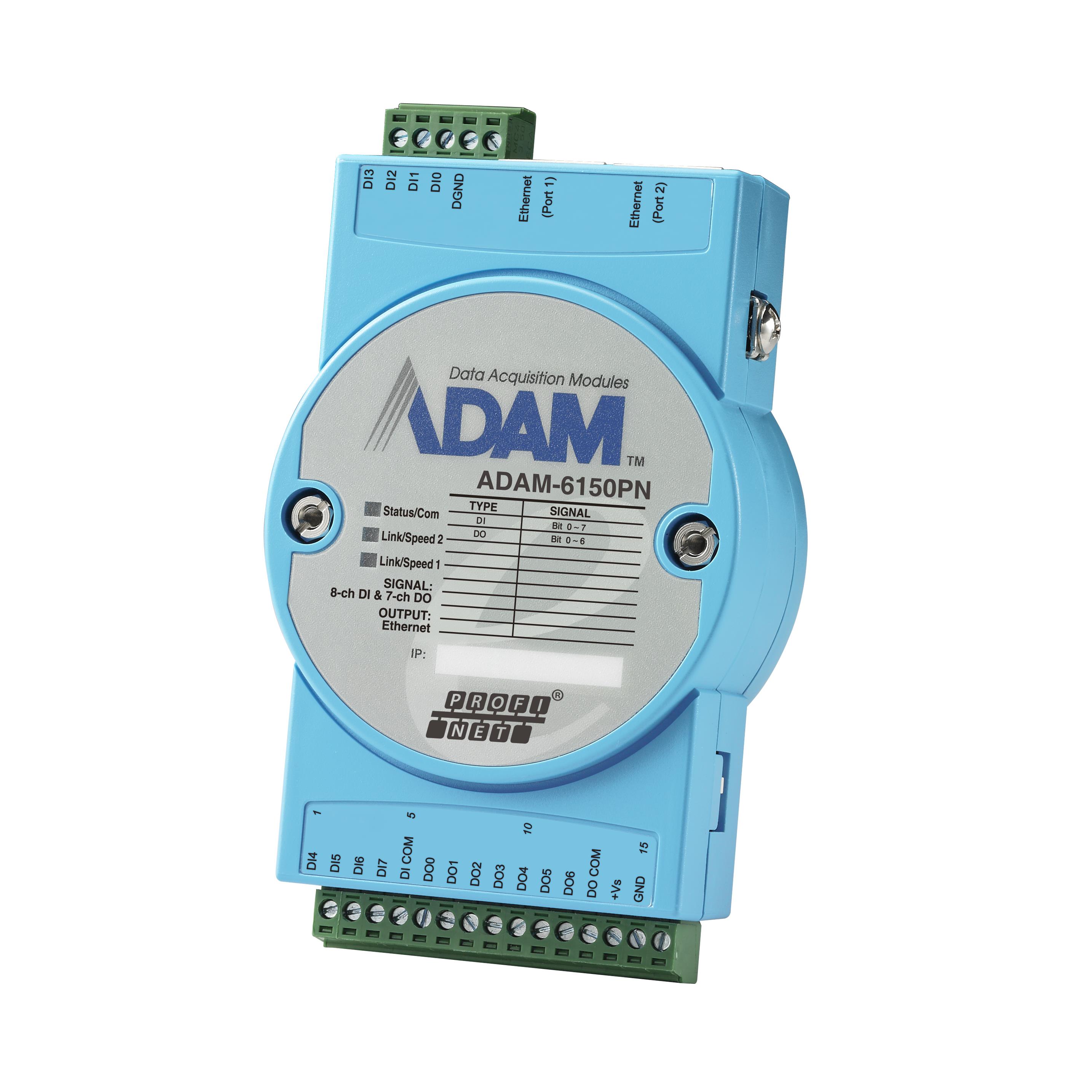

Advantech ADAM-6150PN-AE

Features

• Interface: Ethernet
• Isolation Voltage: 2,500 VDC
• Connectors: 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
• Protocol: PROFINET
• Input Voltage: Dry Contact
• Logic level 0: open
• Logic level 1: close to GND
• Wet Contact
• Logic level 1: 10~30 VDC and -10~-30 VDC
• Logic level 0: -3~3 VDC
• Output Type: Sink
• Output Voltage: 8~35 VDC
• Sink Current: 100 mA max./channel
• Input Voltage: 10~30 VDC
• 8ch digital input/7ch digital output
• Protocol : PROFINET
• 2 x RJ-45 LAN for Daisy-chain connectivity
• 2500VDC isolation protection
