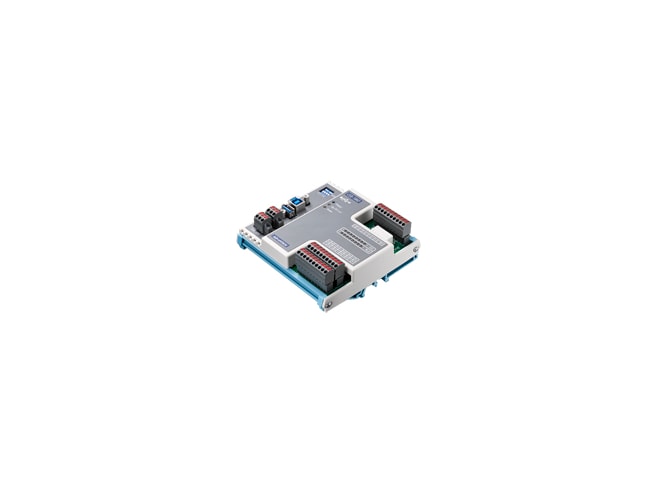

Advantech USB-5860-AE

8-ch Isolated Digital Input and 8-ch Relay USB 3.0 I/O Module.

$292.00
Part Number
  • USB-5860-AE
Highlights...

Features

  • Channels: 16 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • Channels: 8 Form A
  • Contact Rating (Resistive): 2 A @ 30 VDC, 2 A @ 250 VAC
  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 8-ch Isolated Digital Input and 8-ch Form A-type Relay Output
  • Wide input voltage range (10 ~ 30 VDC)
  • High-voltage isolation on input channel (2,500 VDC )
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10
The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.
