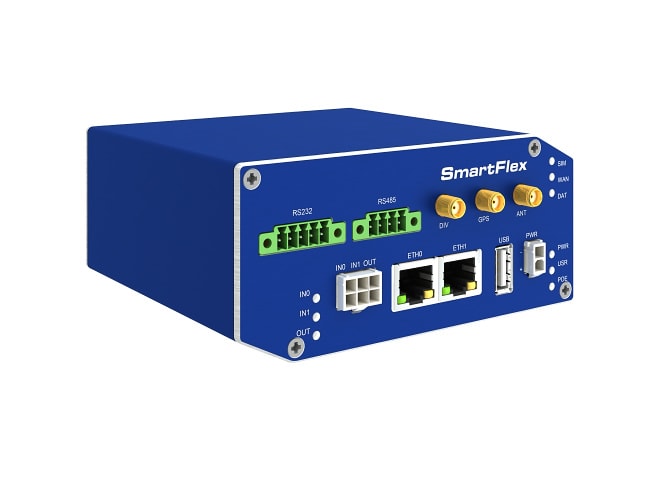

Advantech BB-SR30508320-SWH

Features

• NAM: Yes
• I/O: 2 x DI + 1 x DO
• MicroSD: Yes
• GNSS receiver: Yes
• PoE-PSE: PoE+ 30W
• Cellular Antennas: 2 x SMA
• GPS Antenna: 1 x SMA
• Power Input (DC): 10 ~ 60 VDC
• Sleep Mode: Yes
• Operating Humidity: 0~95%
• Dimensions (W x H x D): 125 x 55 x 97 mm
• Enclosure (Metal): Metal
• Mounting (DIN-rail): Yes
• Advances Software Tool: WA/DMP, WA/VPN
• LTE cat.3, 3G/HSPA+, GPRS/EDGE, NAM, 2× SIM
• LTE B2, B4, B5, B13, B17
• Powerful CPU and Memory, Hosting of SW IoT applications
• 2× ETH, PSE PoE+, PoE+ IEEE 802.3at & 802.3af on 2× ETH
• 1× RS232, 1× RS485/422
• GPS, USB, I/O 2× DI + 1× DO, MicroSD
• DIN rail mounting
• Certifications: CE, FCC/IC, AT&T, Verizon
• Advanced networking, Diagnostics, VPN support, Firewall
