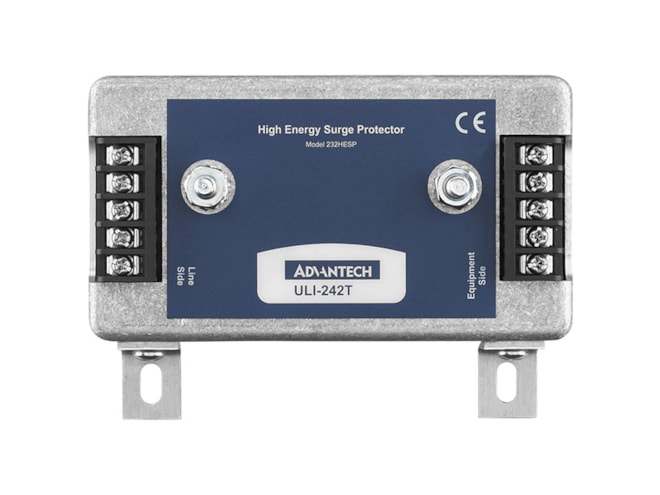

Advantech BB-232HESP

ULI-242T - Serial Surge Protector, RS-232 Data Line, 3 Stage.

$164.00
Part Number
  • BB-232HESP
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-232
  • Serial Port Connector Type: Terminal block
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Surge Suppression: 3-stage Protection, 14.3-15.8Vdc
  • Mounting: Panel
  • Enclosure (Metal): Metal
  • Three stages of protection on every data line: 1)Gas discharge tube, 2)Series resistor, 3)Transient voltage suppressor
  • Protected signal ground connection
  • Five position terminal block
  • Dedicated chassis ground lug
Model 232HESP is a three-stage surge protector that protects against lightning strikes and other types of voltage disturbances with three stages of protection for each line: a gas discharge tube followed by a series resistor and finally a Transient Voltage Suppresser (TVS). The surge protector is housed in a tough metal, panel mount case with a protected signal ground connection and dedicated chassis ground lug.In order to work properly, it is important to have a good connection between the #10 screws and a solid earth ground. Two terminal posts and two metal mounting brackets provide a good ground connection.
