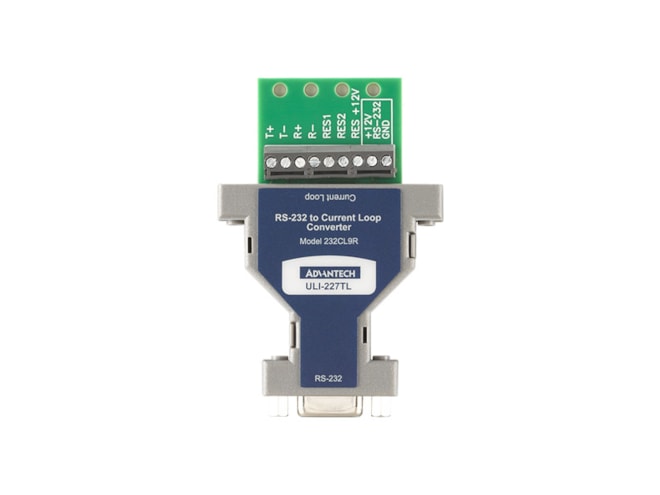

Advantech BB-232CL9R

ULI-227TL - RS-232 (DB9 Male) to 20 mA Current Loop (TB) Converter.

$89.00
Part Number
  • BB-232CL9R
Highlights...

Features

  • Technology: Serial
  • TTL & Current Loop Converter: RS-232 to 20 mA Current Loop
  • Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block
  • Maximum Serial Transmission Speed: 19.2 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Power Input (DC): 12 VDC
  • Power Input (Serial): Port-Powered from RS-232
  • Mounting: Inline
  • RS-232 to digital 20 mA Current Loop with Isolation
  • Each current loop may be operated active or passive
  • Baud rates up to 19.2 kbps
  • Transmit (T+ and T-) loop and Receive (R- and R-) loop
  • Port-power or external power supply (not included, sold separately)
Model BB-232CL9R is a port-powered RS-232 to 20 mA current loop converter. No external power required for passive loop installations, but a power supply is required to generate an active loop (power supply sold separately). Baud rates up to 19.2 kbps.
