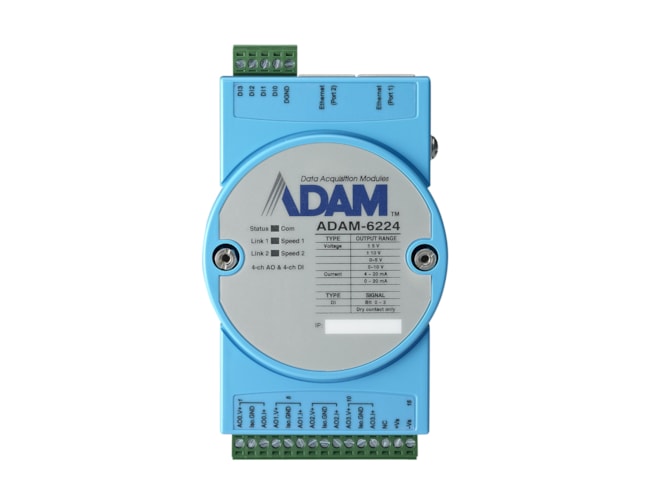

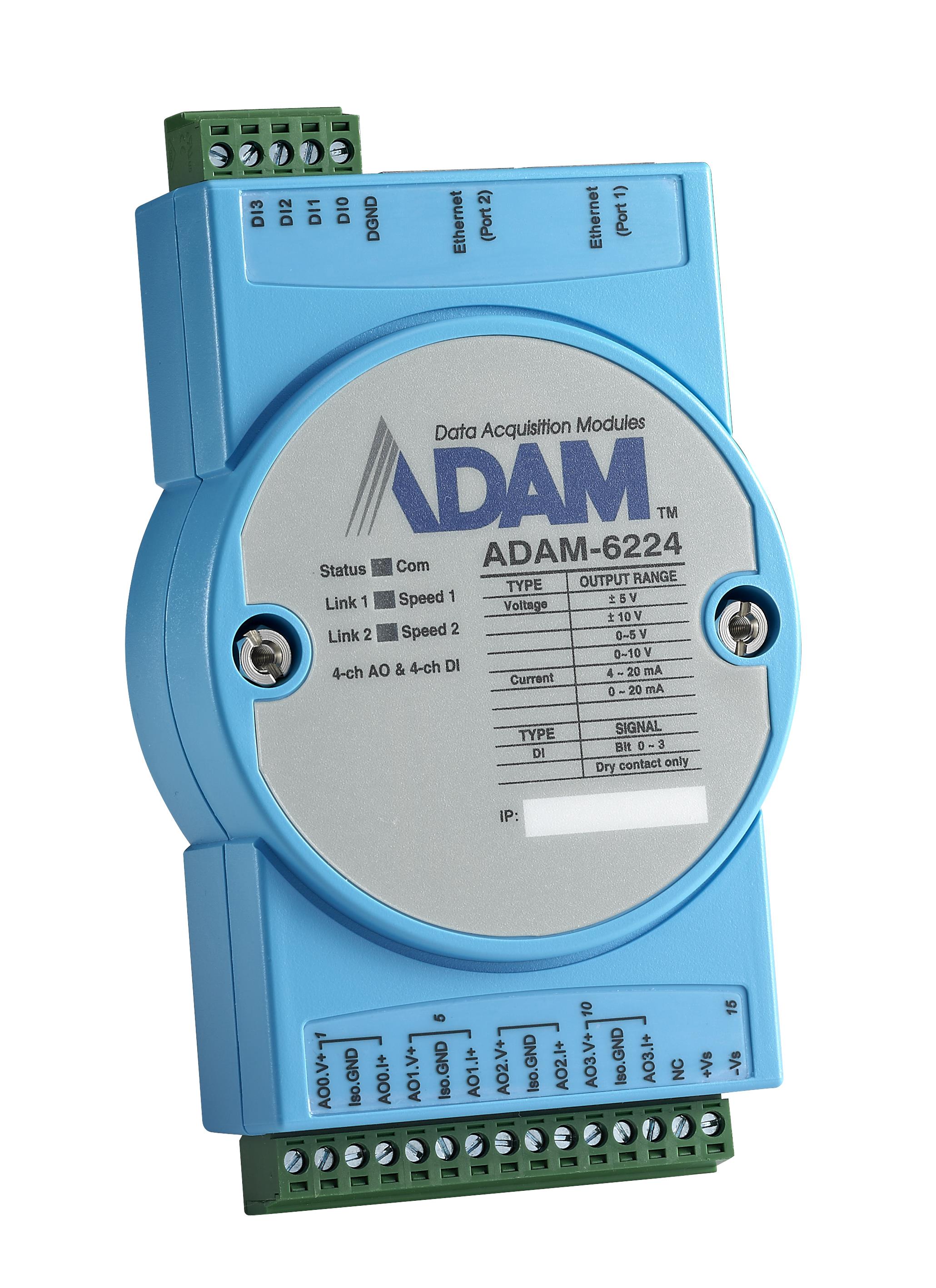

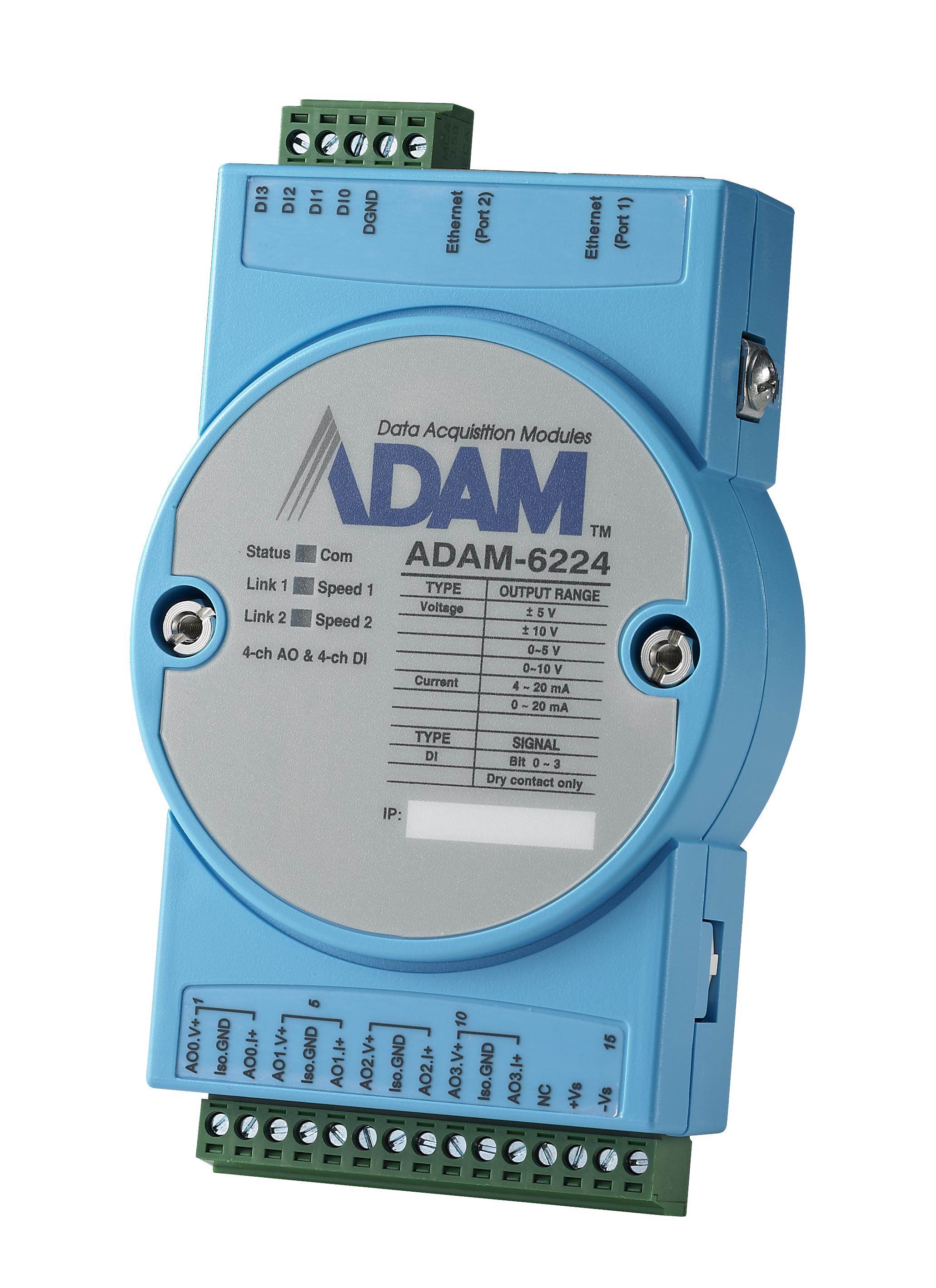

Advantech ADAM-6224-B

4AO/4DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O.

$444.20
Part Number
  • ADAM-6224-B
Highlights...

Features

  • Output Ranges: 0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA
  • Output Type: V, mA
  • Resolution: 12-bit
  • Interface: Ethernet
  • Input Voltage: Dry Contact
  • Logic level 1: close to GND
  • Logic level 0: open
  • Isolation Voltage: 2,500 VDC
  • Connectors: 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
  • Input Voltage: 10~30 VDC
  • 4ch analog output/4ch digital input
  • Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
  • GCL to perform basic logic control rules
  • Cloud access: Data update to Azure
  • Auto-bypass function to ensure daisy-chain data transmission
  • Peer-to-Peer function to map I/O status
  • Built-in web server
  • Watchdog timer to recover the system
In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200 series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what’s worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.
