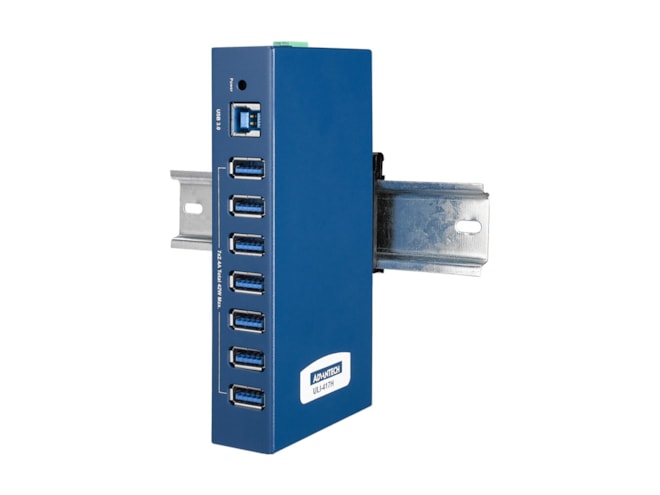

Advantech BB-USH207-B

ULI-417H, 7-port Industrial USB 3.2 Gen 1 Hub.

$167.00
Part Number
  • BB-USH207-B
Highlights...

Features

  • Standard: USB 3.2 Gen 1 / USB 3.0
  • Maximum Transfer Rate: SuperSpeed (5 Gbps)
  • Connector Type: Type B (Female)
  • Standard: USB 3.2 Gen 1 / USB 3.0
  • Maximum Transfer Rate: SuperSpeed (5 Gbps)
  • Connector Type: Type A (Female)
  • Power Input (DC): 9 ~ 30 VDC
  • Operating Temperature: 0 ~ 50 °C (32 ~ 122°F)
  • ESD Protection: 8 kV (Contact) ; 15 kV (Air)
  • Surge Protection: 1 KV
  • Enclosure (Metal): Metal
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • CE: Yes
  • FCC/IC: Yes
  • KCC: Yes
  • Supply Current: 7 x 2.4A on any port to a maximum of 42W total (CDP)
A 7-port industrial USB 3.2 SuperSpeed 5Gbps hub, which is backward compatible with USB 2.0/1.x. Each downstream port supports up to 2.4A, with a maximum of 42W. The ULI-417H features 15 kV (level 4) air ESD protection and 1kV surge protection, requiring external power.
