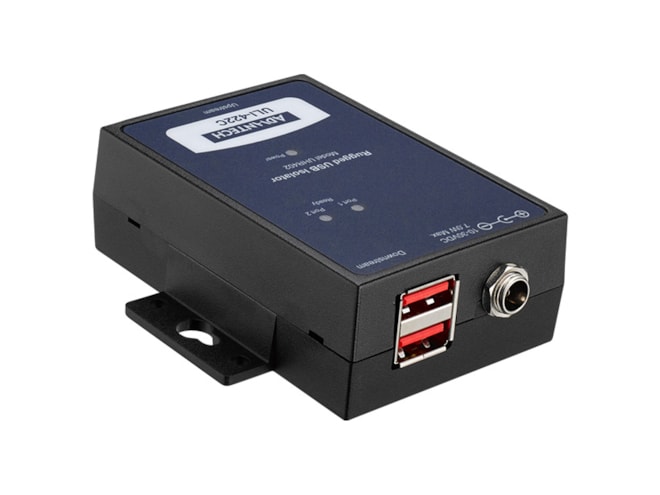

Advantech BB-UHR402

ULI-422C - USB 2.0 Isolator, 4 kV, High Retention Connectors, 2 Ports.

$213.20
Part Number
  • BB-UHR402
Highlights...

Features

  • Technology: USB
  • Power Input (DC): 10 ~ 30 VDC
  • Mounting: Panel
  • ESD Protection: 4 kV (Contact) ; 8 kV (Air)
  • Power: 10-30VDC
  • Temperature: 0 to 50C
  • Standard: USB 2.0
  • Isolation: 4kV
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Connector Type: Type B (Female) High Retention
  • USB Speed: 12Mbps
  • Standard: USB 2.0
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Connector Type: Type A (Female) High Retention
  • Supply Current: 500mA for each downstream port
  • Isolation: 4,000 VDC
  • Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
  • 4 kV isolation protects equipment and data
  • USB 2.0, full speed (12 Mbps)
  • Panel mount, heavy-duty case (optional DIN rail adaptor clips)
  • High Retention USB Connectors
  • Both a power supply and a USB cable are included
A two-port ruggedized isolation designed and tested to meet heavy industrial EMC standards. Has 4 kV isolation between upstream and downstream USB ports to protect equipment from ground loops and ensure data integrity. This USB 2.0 isolator is powered from an external 10 to 30 VDC power supply unit.
