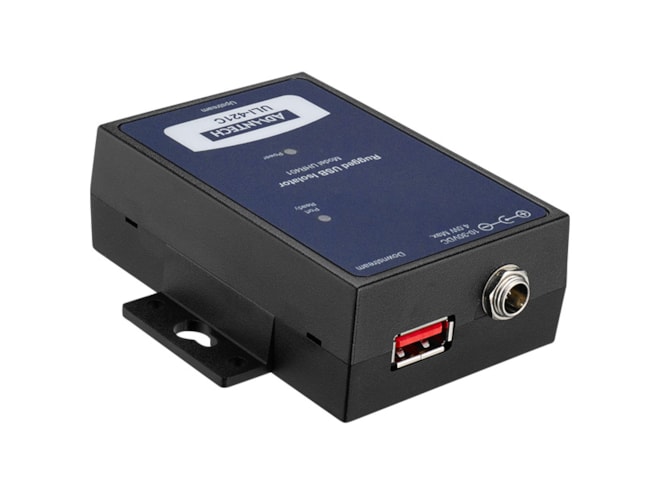

Advantech BB-UHR401

ULI-421C - USB 2.0 Isolator, 4 kV, High Retention Connectors.

$202.00
Part Number
  • BB-UHR401
Highlights...

Features

  • Technology: USB
  • Power Input (DC): 10 ~ 30 VDC
  • Mounting: Panel
  • Power: 10-30VDC
  • ESD Protection: 4 kV (Contact) ; 8 kV (Air)
  • Temperature: 0 to 50C
  • Standard: USB 2.0
  • Isolation: 4kV
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Connector Type: Type B (Female) High Retention
  • USB Speed: 12Mbps
  • Standard: USB 2.0
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Connector Type: Type A (Female) High Retention
  • Supply Current: 500mA for each downstream port
  • Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
  • Isolation: 4,000 VDC
  • 4 kV isolation protects equipment and data
  • USB 2.0, full speed (12 Mbps)
  • Panel mount, heavy-duty case (optional DIN rail adaptor clips)
  • High Retention USB Connectors
  • Both a power supply and a USB cable are included
A one-port ruggedized USB 2.0 isolator designed and tested to meet heavy industrial EMC standards. Features 4 kV isolation between upstream and downstream USB ports to protect equipment from ground loops and ensuring data integrity. Powered from an external 10 to 30 VDC power supply.
