Advantech EKI-7428G-4CI-AE

24GE+4G Combo Port Managed Switch w/ Wide Temp.

$1,654.70
Part Number
  • EKI-7428G-4CI-AE
Highlights...

Features

  • Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az
  • Vibration: IEC 60068-2-6
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • EMC: CE, FCC
  • Safety: UL 61010-2-201
  • Temperature (Max. Operating): 70°C (158°F)
  • Relative Humidity: 10~95%
  • Operating Humidity: 10~95%
  • Fiber Transmission Speed: 10/100/1000 Mbps
  • Fiber Transmission Distance: Up to 110 km
  • Fiber Port Connector Type: SFP cage
  • Fiber Port Interface: SFP
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (Rack Mount): Yes
  • Weight: 3.8 kg
  • IP Rating: IP30
  • Dimensions (W x H x D): 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)
  • Method: Telcordia(Relax), GB
  • Time: 787,940 hours
  • Power Operating Current: 0.83A @ 24 V
  • Power Connector Type: 4-pin removable screw terminal (power & relay)
  • Power Input (DC): 12 ~ 48 VDC
  • Power Consumption: 20W (system)
  • Reverse Polarity: Present
  • Jumbo Frame: 9,216 bytes
  • Switch Fabric Speed: 56Gbps
  • Packet Buffer Size: 4.1M bit
  • MAC Table Size: 8K
  • Warranty Period: 5 years
  • 24 x Gigabit ports + 4 x Gigabit Copper/SFP combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • IXM function enables fast deployment
  • Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
  • 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output

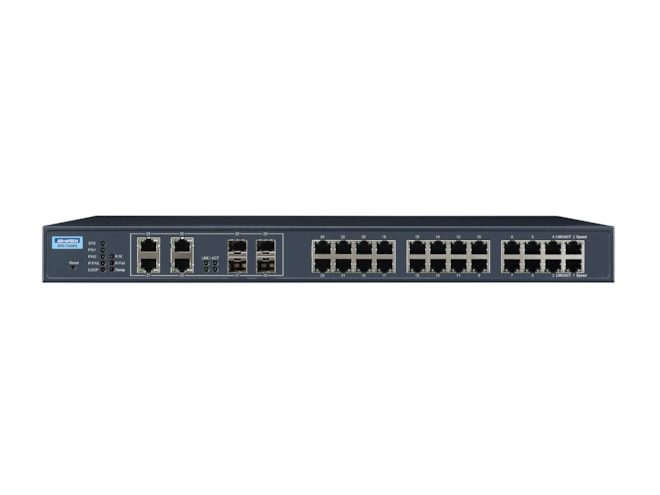

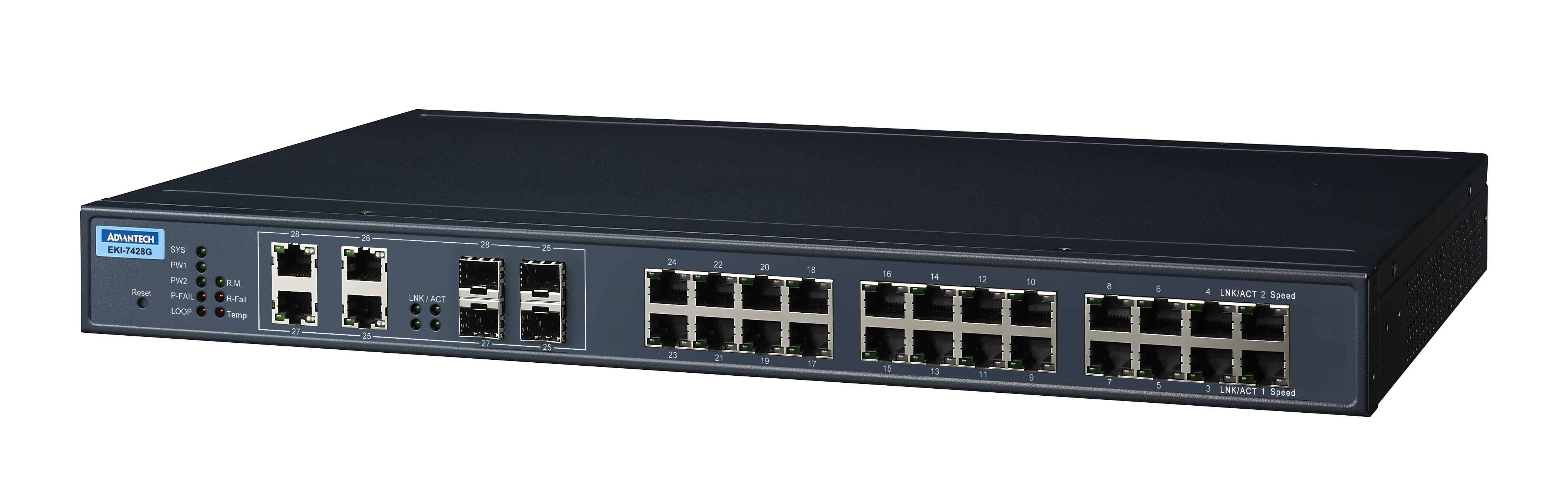

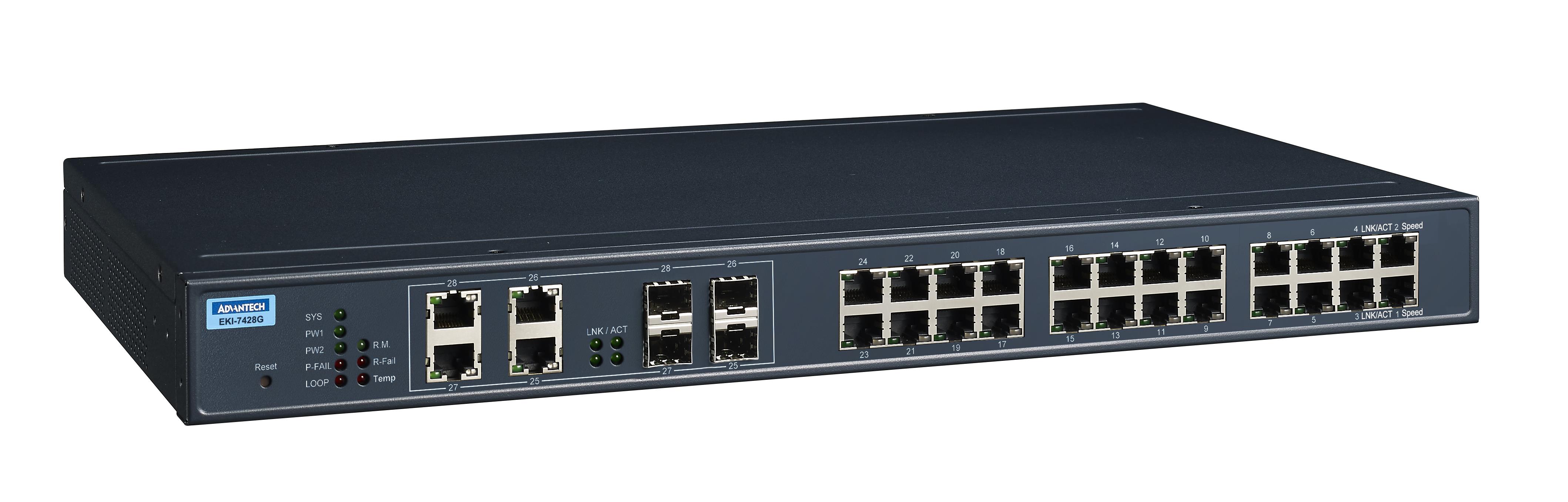

The EKI-7428G is an industrial-class layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption device, moreover, it supports high reliability with -40 ~ 70°C operating temperatures, and dual 48 V DC input power design ensure vital network capabilities with minimum downtime. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer's time and costs.
