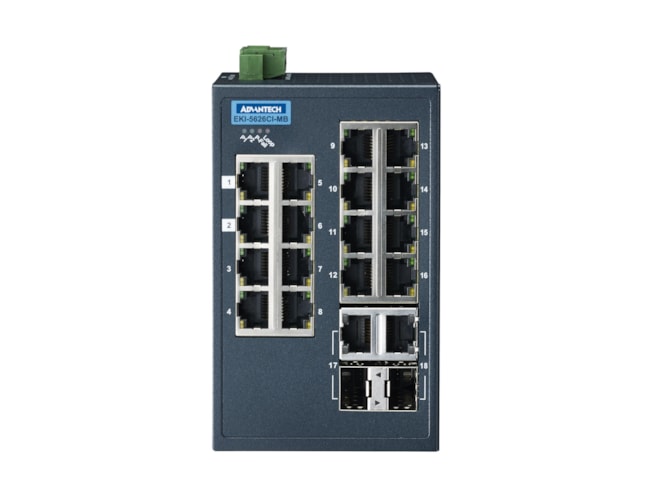

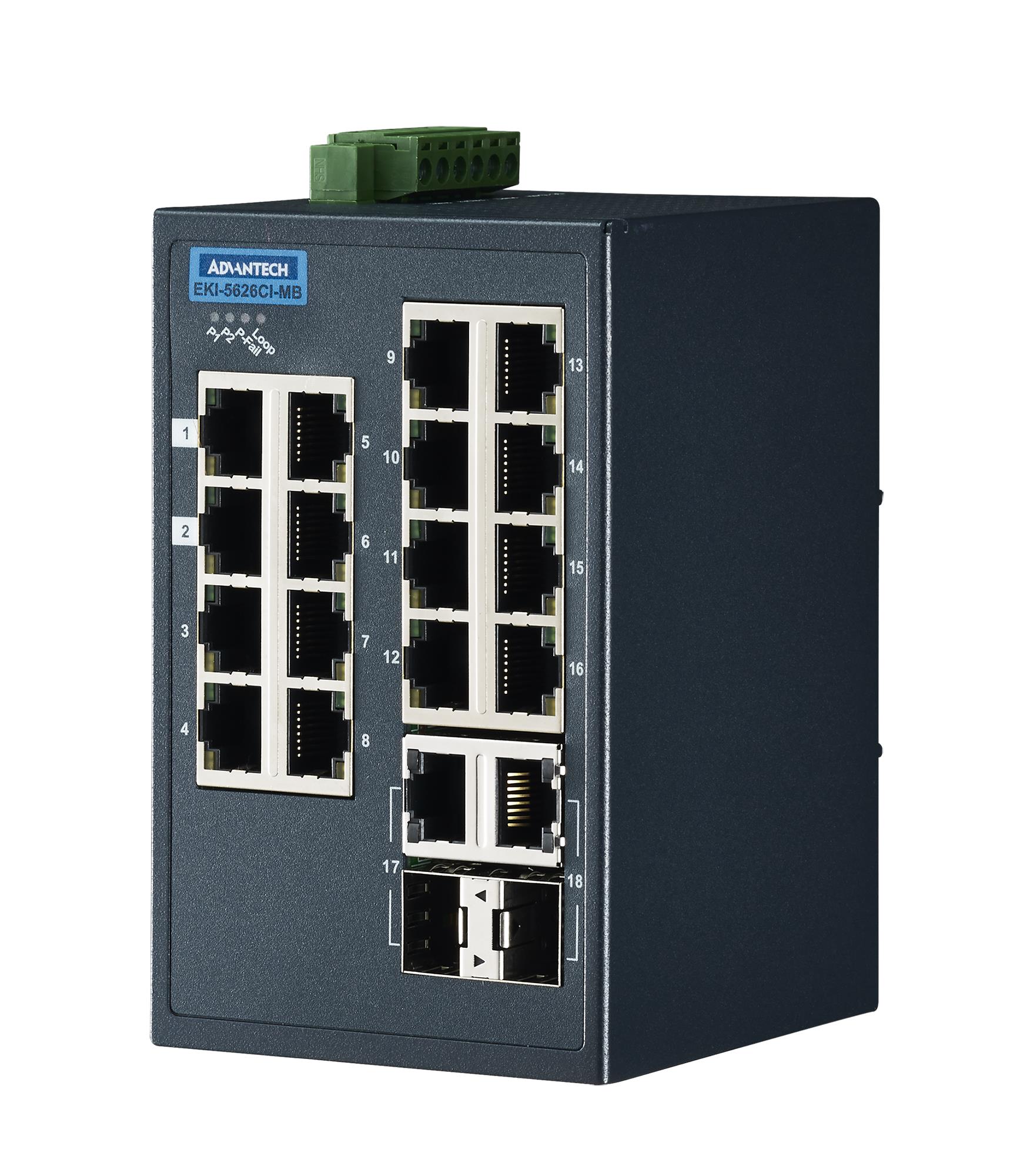

Advantech EKI-5626CI-MB-AE

16+2G port Lite Managed Ethernet Switch support Modbus/TCP, -40~75℃.

$1,171.26
Part Number
  • EKI-5626CI-MB-AE
Highlights...

Features

  • EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • EMI: CE, FCC Class A
  • Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az
  • Freefall: IEC 60068-2-32
  • Safety: UL 508
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • Relative Humidity: 10~95%
  • Temperature (Max. Operating): 75°C (167°F)
  • Fiber Port Connector Type: SFP cage
  • Fiber Port Interface: SFP
  • Fiber Transmission Speed: 10/100/1000 Mbps
  • Fiber Transmission Distance: Up to 110 km
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • RJ-45/SFP Combo Port Speed: 10/100/1000 Mbps
  • Modbus RTU: Yes
  • Ethernet: Yes
  • Dimensions (W x H x D): 74 x 120 x 84 mm
  • IP Rating: IP30
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Weight: 0.7 kg
  • Method: Telcordia(Relax), GB
  • Time: 2,825,281 hours
  • Support PoE: No
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Consumption: 8.2W (system)
  • Power Input (DC): 12 ~ 48 VDC
  • Power Operating Current: 0.12A @ 48Vdc (system)
  • Reverse Polarity: Present
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 8K
  • Packet Buffer Size: 4.1M bit
  • Switch Fabric Speed: 7.2Gbps
  • Warranty Period: 5 years
  • 16 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports (EKI-5626C/CI-MB)
  • Entry-Level Managed Switch
  • IXM function enables fast deployment
  • Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
The EKI-5626C/CI-MB are a new generation of entry-level managed switch products. They support basic Layer 2 managed function such as Ring, SNMP, IGMP etc. Besides, they support Modbus/TCP and can easily integrate with SCADA. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.
