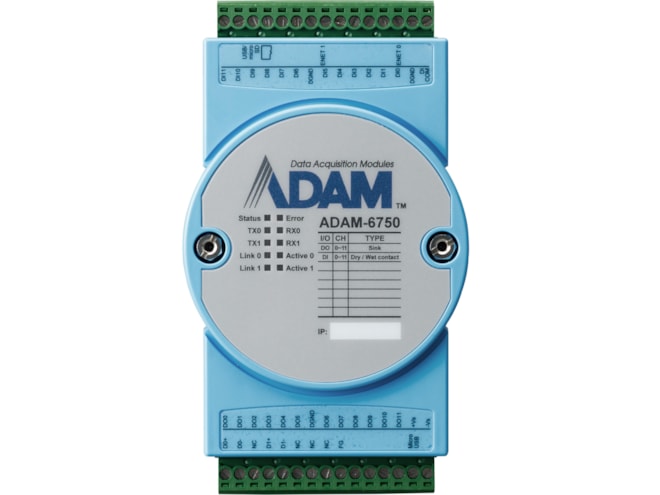

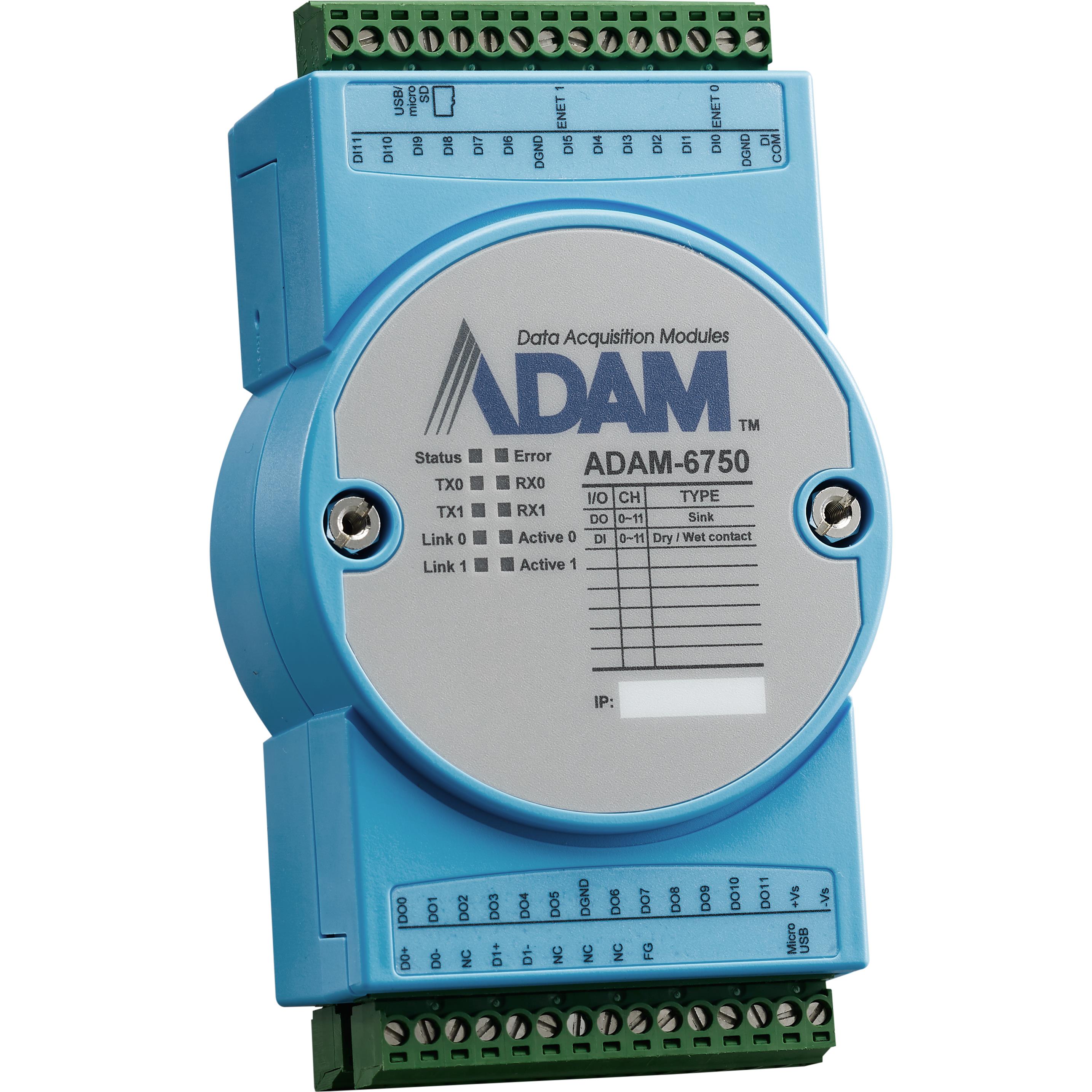

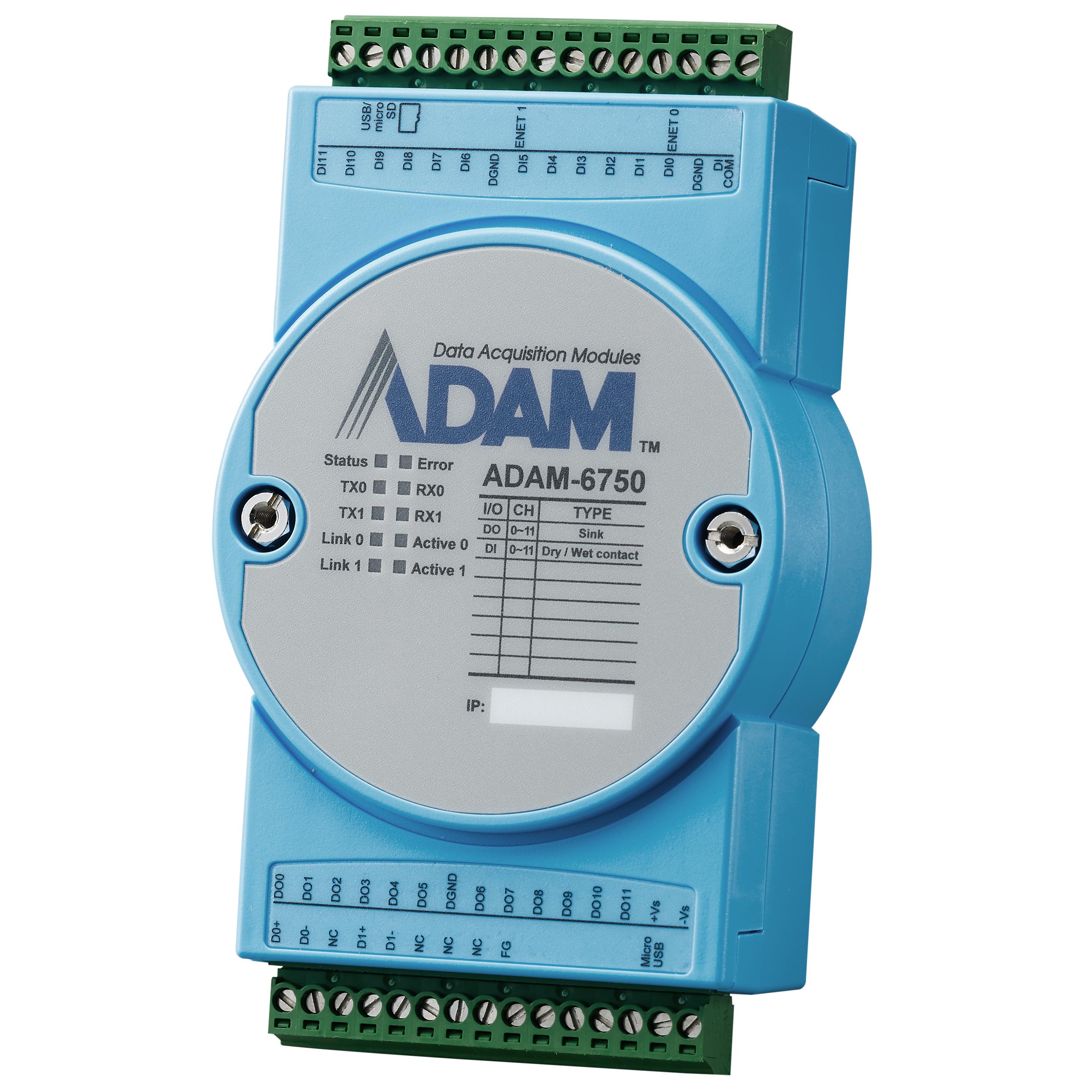

Advantech ADAM-6750-A

Features

• Max. Input Frequency: 3 kHz
• Isolation Voltage: 2,500 VDC
• Speed: 10/100 Mbps
• Connectors: 1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal
• Programming Language: Node-RED, Liunx C
• I/O: 2 x RS-485, 1 x Micro USB, 1 x USB 2.0
• OS Support: Linux
• Storage: 1 x micro SD Slot
• Input Voltage: Dry Contact
• Logic level 1: close to GND
• Logic level 0: open
• Wet Contact
• Logic level 1: 10~30 VDC
• Logic level 0: 0~3 VDC
• Output Type: Sink
• Output Voltage: 0~30 VDC
• Sink Current: 100 mA max./channel
• Input Voltage: 10~30 VDC
• Linux Open Platform
• 12ch digital input(counter)/12ch digital output(pulse output)
• Programming: linux C API, Node-RED (graphic programming environment)
• Cloud/Database access ,edge data analysis and logic control, data visualization by dashboard
• Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0
