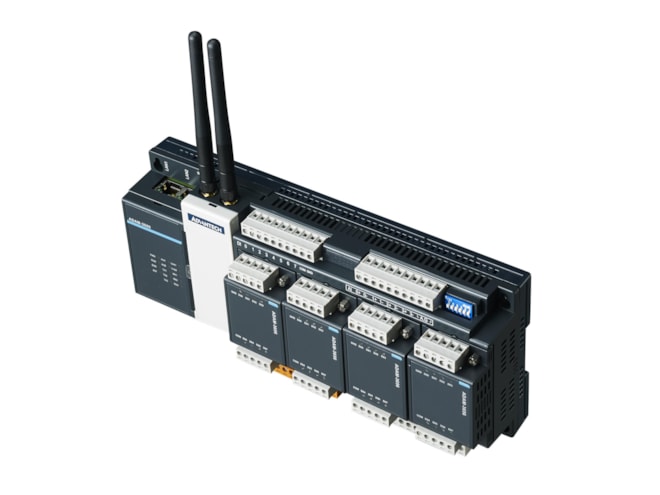

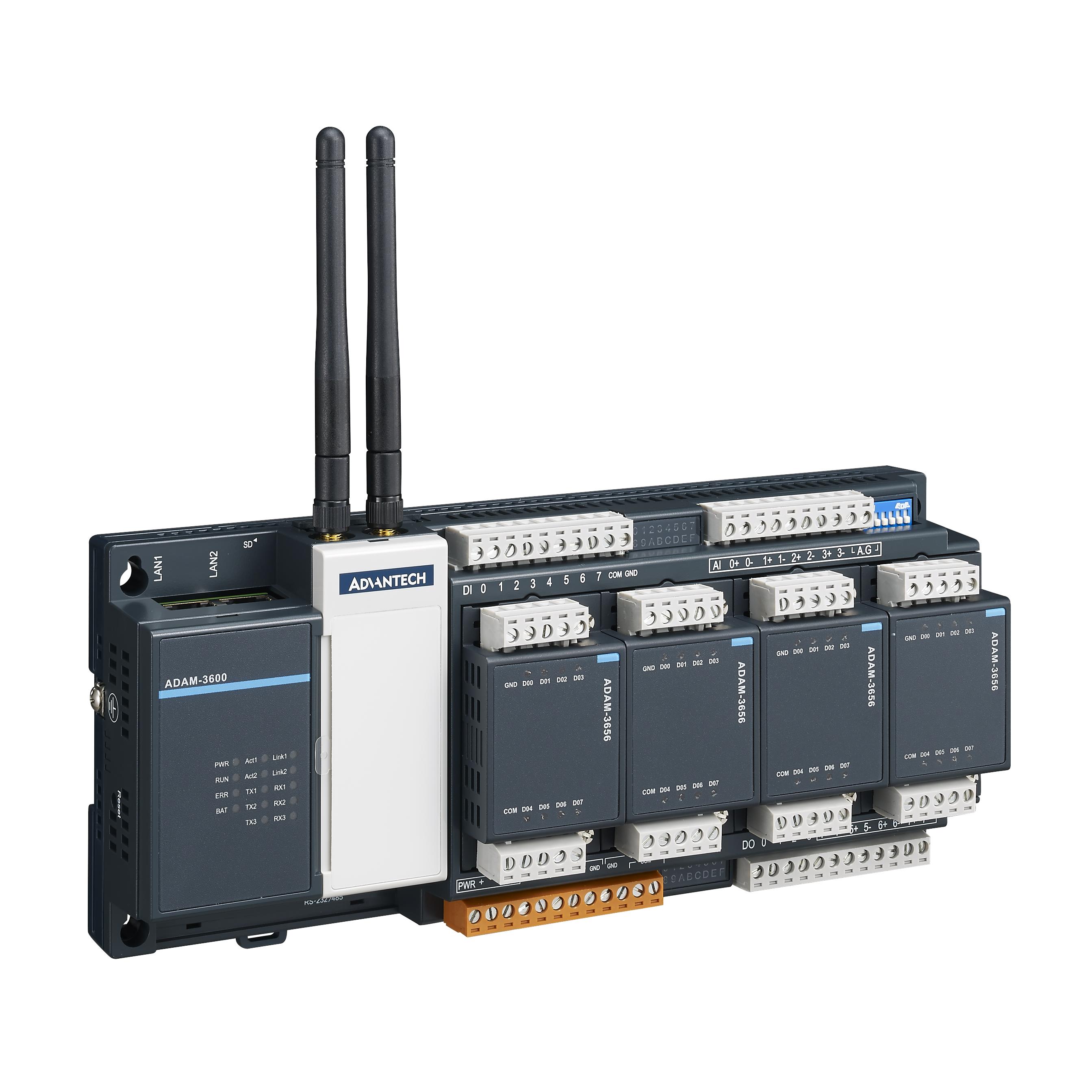

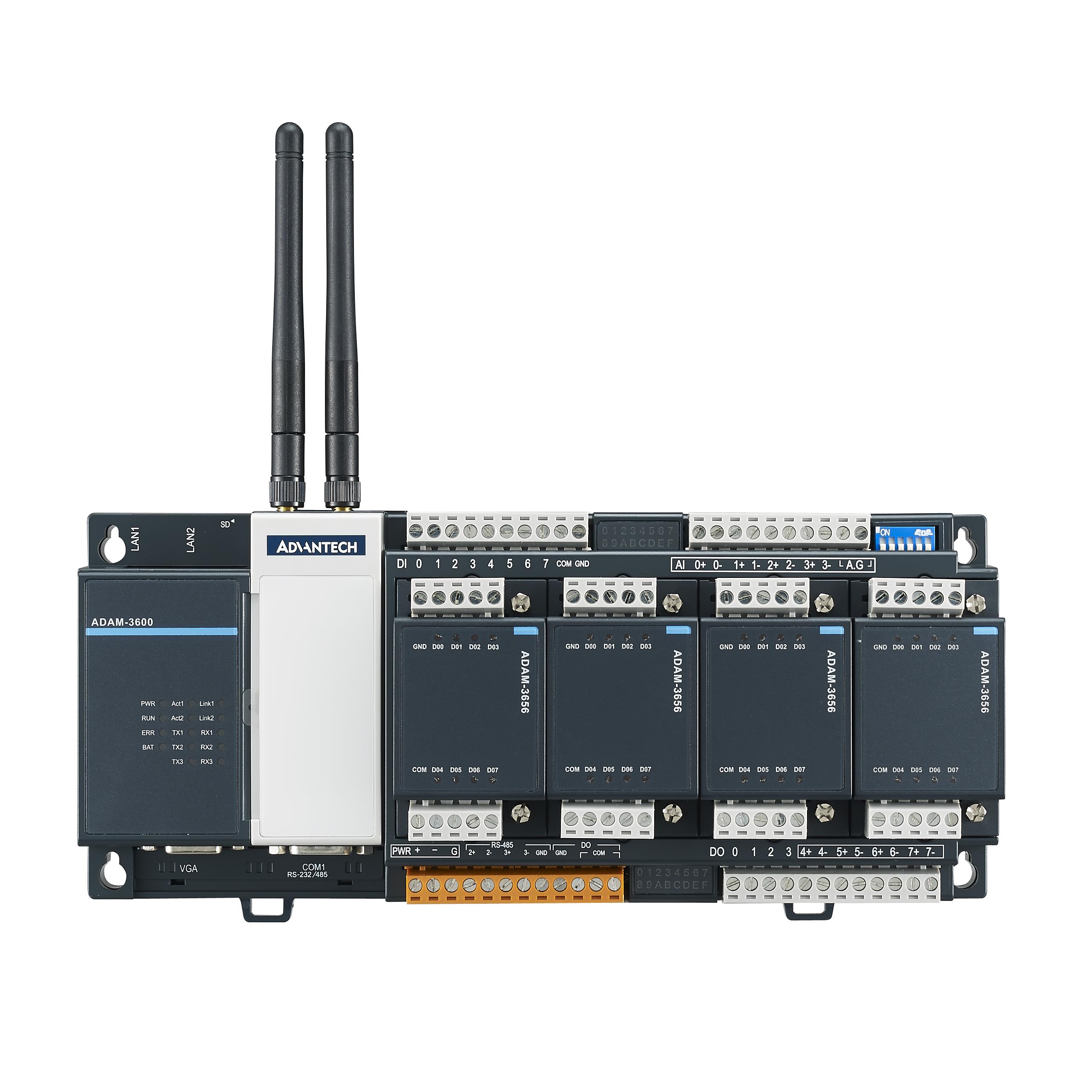

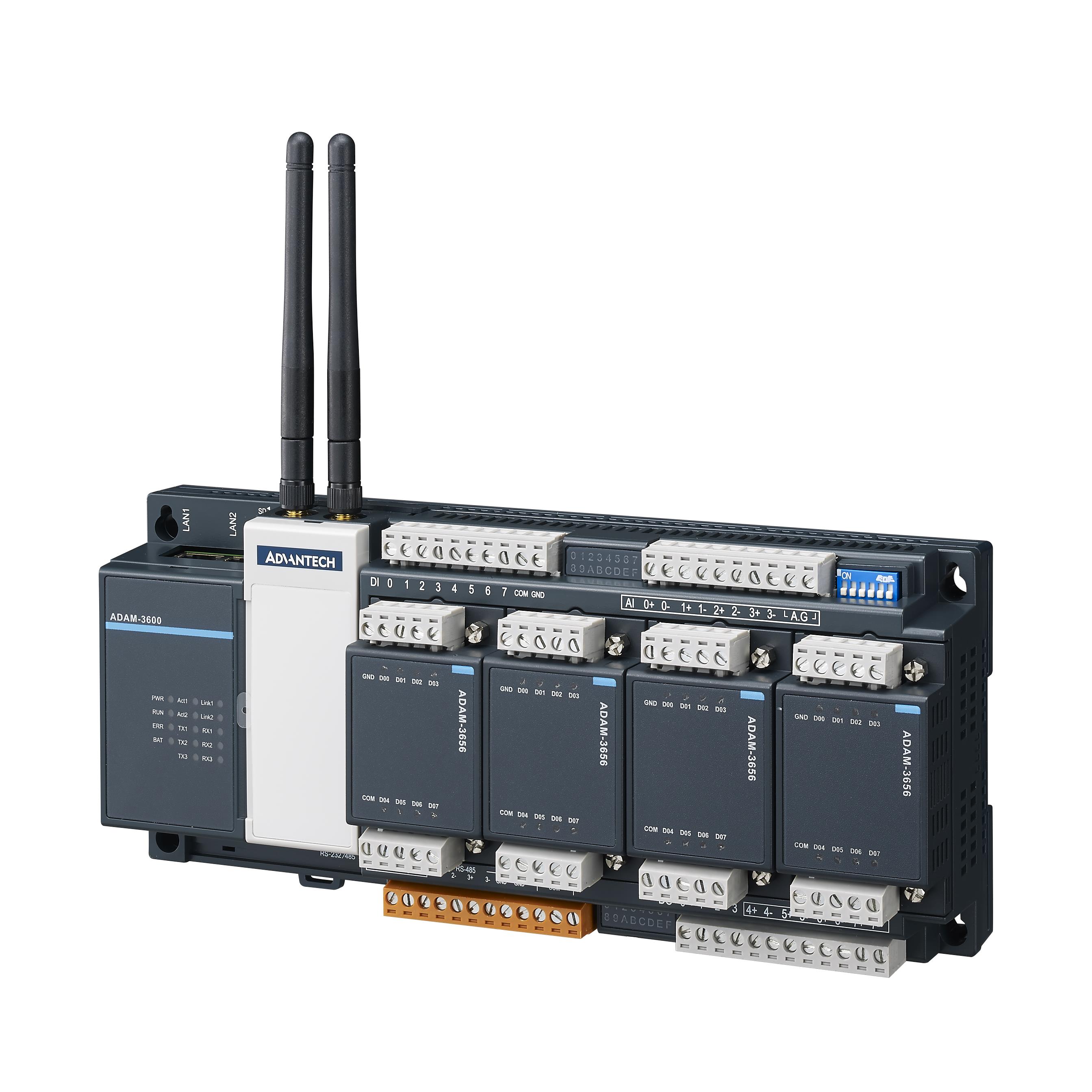

Advantech ADAM-3600-C2GL1A1E

Features

• Input Range: ±10 V, ±2.5 V, 0~20 mA, 4~20 mA
• Isolation Protection: 2,000 VDC
• lnput Type: V, mA
• Resolution(Bits): 16-bit
• Digital Filter: 3 ms
• Input Voltage: Wet Contact
• Logic Level 0: 0~+5 V
• Logic Level 1: +11~30V
• Isolation Protection: 2,000 VDC
• Isolation Protection: 2,000 VDC
• Voltage Rating: 8~30 VDC
• Isolation Voltage: 2,000 VDC
• Relative Humidity: 5~95% RH (non-condensing)
• Speed: 10/100 Mbps
• Interface: 1 x Full-size mini PCIe 2.0
• SIM card slot: Nano SIM card
• Protocol: IEC61131-3&C
• Certification: CE, FCC class A
• CPU: Cortex-A8 AM3352
• Expansion: 1 x Full-size mPCIe Slot,
• 1 x Half-size mPCIe Slot
• I/O: 1 x RS232/485, 2 x RS485,
• 1 x USB 2.0, 2 x LAN,1 x VGA
• LAN: 2 x 10/100 Mbps
• LED Indicators: PWR, RUN / ERROR,TX1, RX1, TX2, RX2, I/O
• Memory: 256MB, Battery Backup RAM 32K
• OS Support: Linux
• Power Consumption: 5 W @ 24 VDC
• Power Input: 10~30 VDC
• Storage: 1GB MicroSD card, SD card slot (optional)
• Video Port: VGA
• Displays: 1 x VGA
• Expansion: 1 x Full-size mPCIe Slot, 1 x Half-size mPCIe Slot
• Power Connector: 1 x 12-Pin Terminal Block
• Serial Ports: 1 x RS-232/485 (DB9), 2 x RS-485 (Terminal Block)
• USB Ports: 1 x USB 2.0
• Data Signals: RS-232: TxD, RxD, GND
• RS-485: Data+, Data-
• Standard (Technology): WIFI, LTE
• Domain Focused Onboard IO -8AI / 8DI / 4DO
• High I/O Flexibility with 4-slot I/O Expansion
• Modbus & DNP3 Protocol
• IEC 61131-3&C Programming Language
• Operation Temperature -40~70°C
• Multiple wireless options for Zigbee/ Wi-Fi/ 3G/ 4G/ GPRS
• High Performance CPU Cortex A8 600MHz
• Low Power DDR3L 256MB RAM
• Embedded Real-time Linux Kernel
