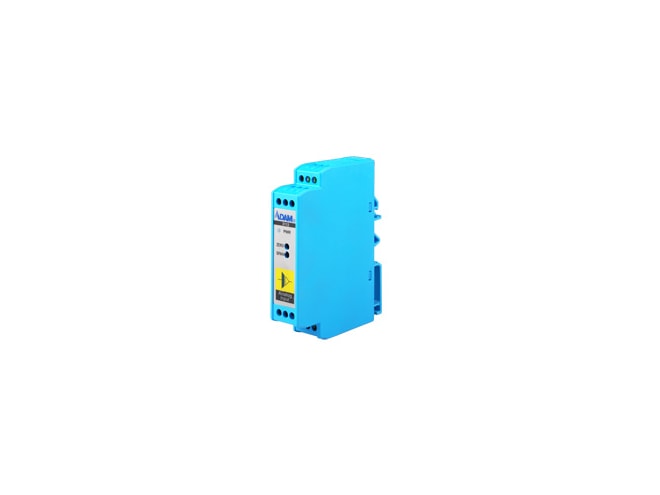

Advantech ADAM-3112-AE

Isolated AC Voltage Input Module.

$180.00
Part Number
  • ADAM-3112-AE
Highlights...

Features

  • Input Range: 0~120 V, 0~250 V, 0~400 V
  • Output Ranges: 0~5 V
  • 0 ~ 450 VAC to 0 ~ 5 VDC
  • AC voltage measurement
  • 1,000 VDC isolation between output and power
  • 2,500 VAC isolation between output and input
  • Input impendent: 2 Mohm
  • Multi input modes
  • Accuracy: ±0.1% FSR
  • Flexible Din-rail mounting
  • Operates from a single +24V­DC
The ADAM-3112 is an isolated AC voltage input signal conditioner. It supports three different AV voltage input modes (120V, 250V and 400V) and transduces them into 0~5VDC output.
