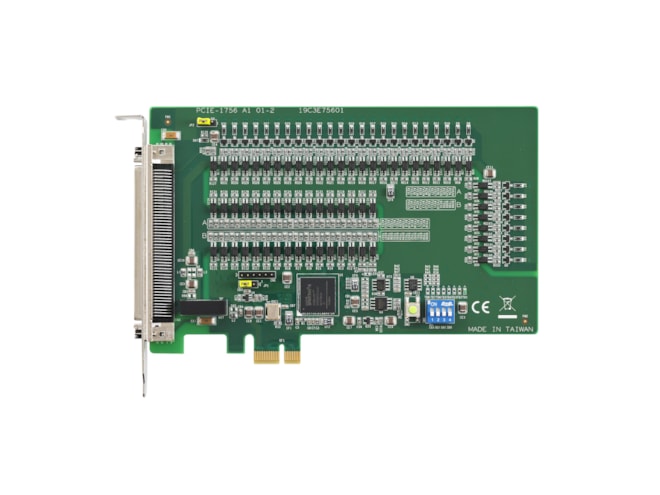

Advantech PCIE-1756-BE

64-ch Isolated Digital I/O PCI Express Card.

$258.00
Part Number
  • PCIE-1756-BE
Highlights...

Features

  • Wide output range (5 ~ 40 VDC)
  • High sink current on isolated output channels (500mA max./ch)
  • Wide input range (10 ~ 30 VDC)
  • High-voltage isolation (2,500 VDC)
  • Interrupt handling capability
  • 2,000 VDC ESD protection
  • Either +/- voltage input for DI by group
  • High over-voltage protection (70 VDC)
  • High-voltage isolation (2,500 VDC)
  • Output status read-back
  • Keeps the output settings and values after system hot reset
  • Channel-freeze function
The Advantech PCIE-1752, PCIE-1754 and PCIE-1756 series products offer 64 isolated digital input and output channels with 2,500 VDC isolation protection. They feature a wide input range (10 ~ 30 VDC), wide output range (5 ~ 40 VDC) and high sink current (500mA max./channel) can make PCIE-1752/1754/1756 series products easily used in industrial automation control systems. With the help of the latest Advantech driver - DAQNavi, users can perform the configuration and setting easily and efficiently in the programming.
