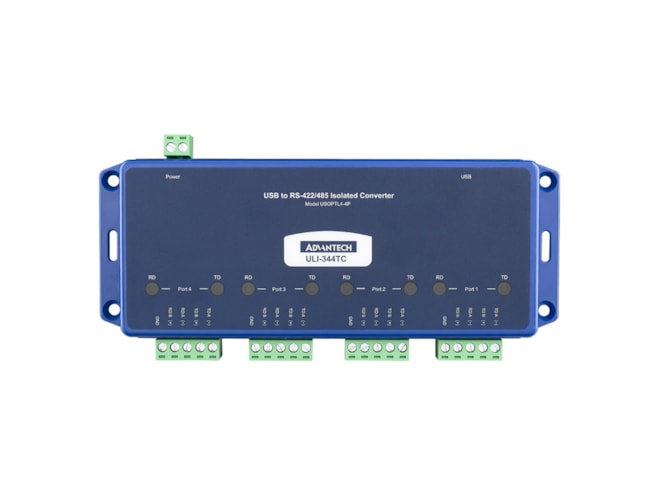

Advantech BB-USOPTL4-4P

ULI-344TC - USB to RS-422/485 (Terminal Block) Isolated Converter.

$341.30
Part Number
  • BB-USOPTL4-4P
Highlights...

Features

  • Technology: USB
  • Standard: USB 2.0
  • Mounting: Panel
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Power: Bus Powered
  • Connector Type: Type B (Female) High Retention
  • Temperature: 0 to 70C
  • Isolation: 2kV
  • Serial Port Connector Type: Terminal block
  • Maximum Serial Transmission Speed: 921.6 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Serial Type: RS-422, RS-485
  • Serial Connector: Terminal Block
  • Isolation: 2,000 VDC
  • Power Input (DC): 10 ~ 30 VDC
  • Power Input (USB): Port-Powered from USB host (5 VDC)
  • Mounting: Panel
  • Serial Standard: RS-422 / RS-485
  • USB to RS-422/485 Converter
  • 2 kV Isolation
  • 921.6 Kbps Serial Data Rate
  • Flat Panel Mounting
  • Terminal Block for 10-30 VDC Power Input
  • High Retention USB Connector, Plug in Serial Terminal Block
  • USB Cable Included
Four serial ports, 2-wire RS-485 or 4-wire USB to RS-422/485. Long range, multi-drop communications. Easy to set up with plug in terminal blocks on RS-422/485 side and a high retention USB connector that works with a standard USB cable. LEDs indicate transmit and receive. 10-30 VDC power input.
