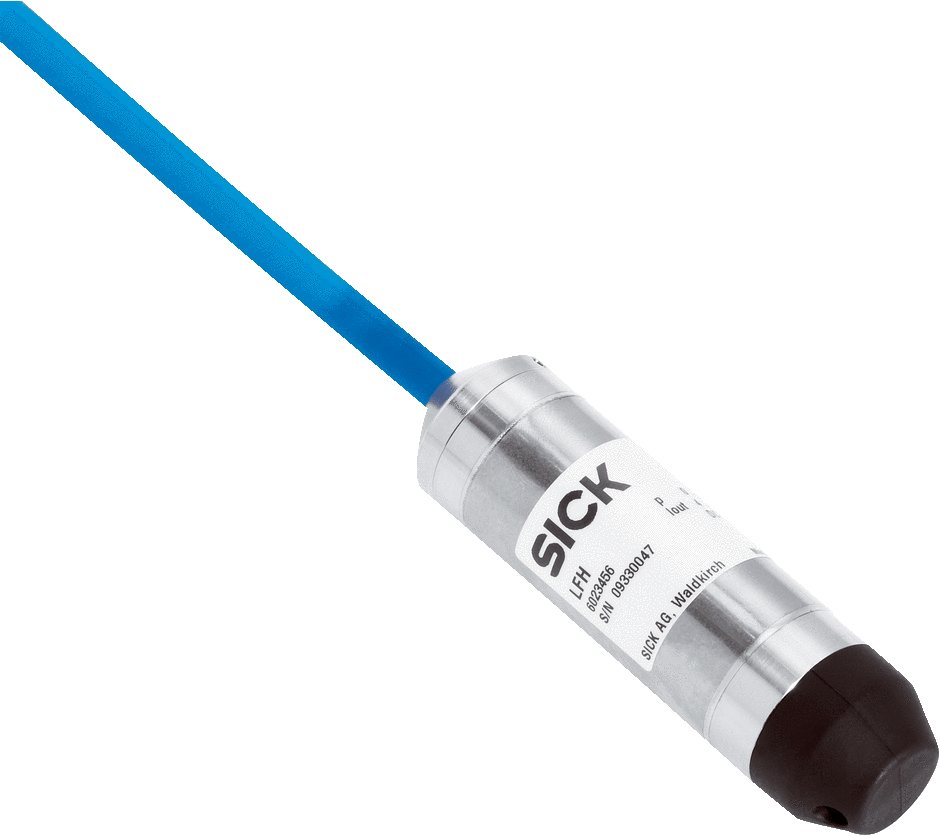

Sick 6047929 / LFH-EW2X5G1AF10SZ0 Pressure Sensor

0 to 2.5 mH2O measuring range and ≤ ± 0.25 % of the span for Enhanced variant p ≥ 0.25 bar accuracy. –10 °C ... +85 °C process temperature. 4 mA ... 20 mA, 2-wire output signal. FEP cable.

$1,340.00
Effective August 21st, 2026 SICK has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • LFH-EW2X5G1AF10SZ0
  • 6047929
Highlights...

Features

  • 0 mh2o to 2.5 mh2o measuring range
  • ≤ ± 0.25 % of the span for enhanced variant p ≥ 0.25 bar accuracy
  • –10 °c to +85 °c process temperature
  • 4 ma to 20 ma, 2-wire output signal
  • Fep cable connection type
  • Ip68 enclosure rating
  • 10 m length of cable
