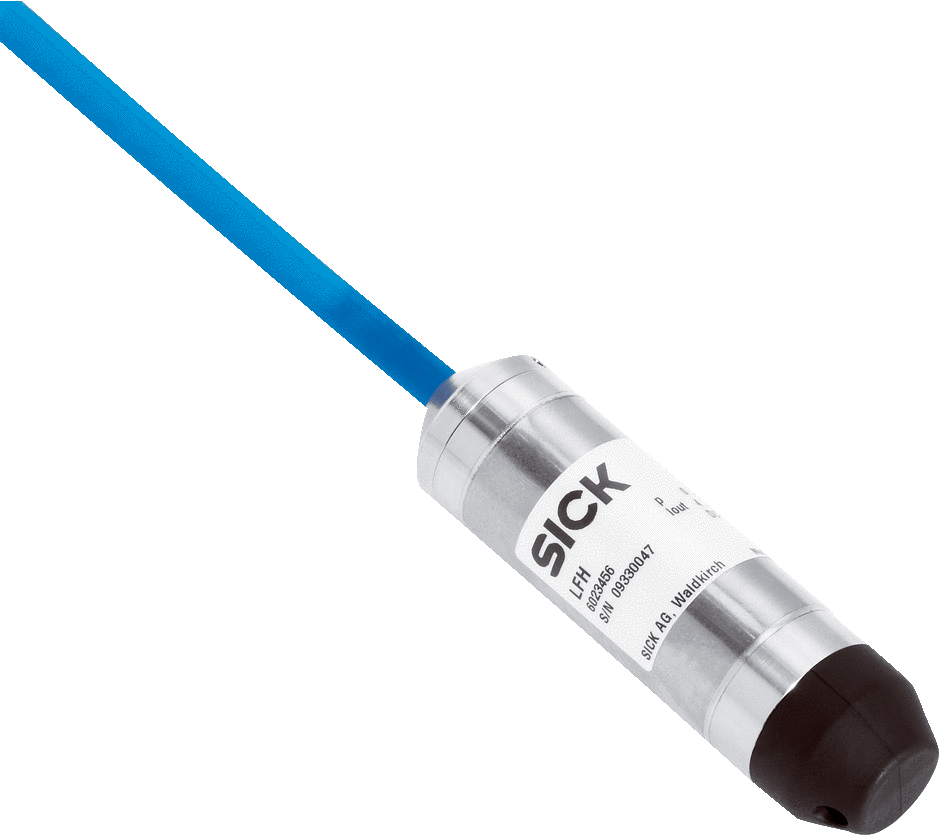

Sick 6069706 / LFH-EBX16G1AS15SZ0 Pressure Sensor

0 to 0.16 bar measuring range and ≤ ± 0.5 % of span with enhanced version with p < 0.25 bar accuracy. –10 °C ... +50 °C process temperature. 4 mA ... 20 mA, 2-wire output signal. PUR cable.

$1,232.00
Effective August 21st, 2026 SICK has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • LFH-EBX16G1AS15SZ0
  • 6069706
Highlights...

Features

  • 0 bar to 0.16 bar measuring range
  • ≤ ± 0.5 % of span with enhanced version with p < 0.25 bar accuracy
  • –10 °c to +50 °c process temperature
  • 4 ma to 20 ma, 2-wire output signal
  • Pur cable connection type
  • Ip68 enclosure rating
  • 15 m length of cable
View other configurations.
