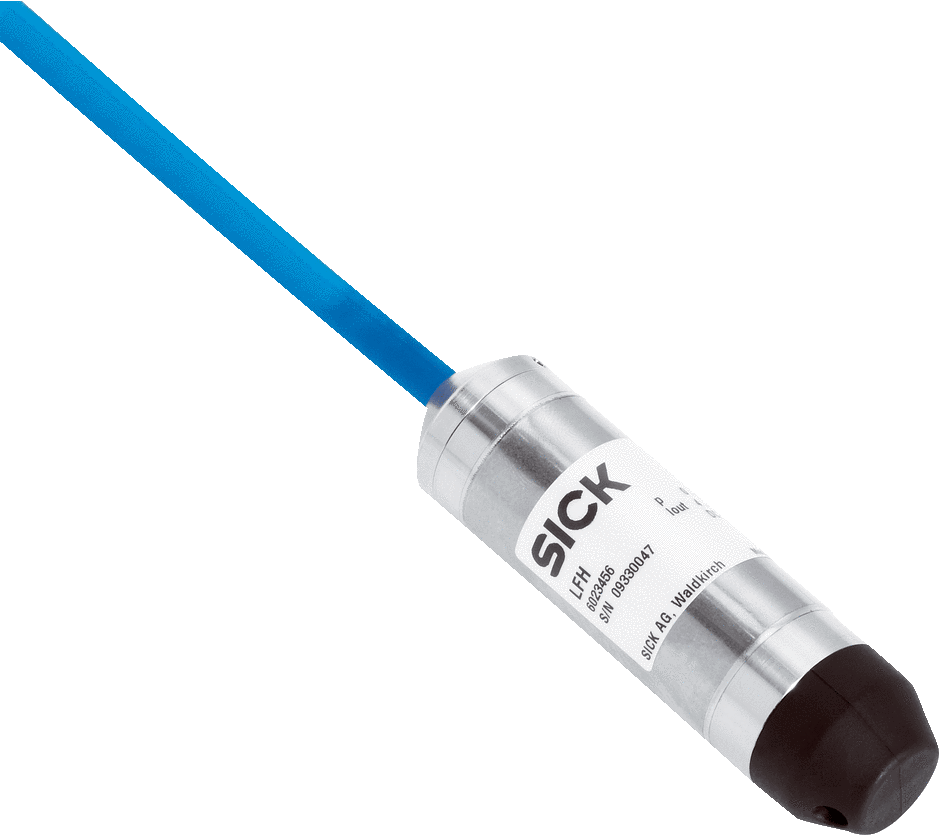

Sick 6040956 / LFH-SB1X6G1AS25SZ0 Pressure Sensor

0 to 1.6 bar measuring range and ≤ ± 0.5 % of the span accuracy. –10 °C ... +50 °C process temperature. 4 mA ... 20 mA, 2-wire output signal. PUR cable.

$870.00
Effective August 21st, 2026 SICK has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • LFH-SB1X6G1AS25SZ0
  • 6040956
Highlights...

Features

  • 0 bar to 1.6 bar measuring range
  • ≤ ± 0.5 % of the span accuracy
  • –10 °c to +50 °c process temperature
  • 4 ma to 20 ma, 2-wire output signal
  • Pur cable connection type
  • Ip68 enclosure rating
  • 25 m length of cable
View other configurations.
